Value Collection 951-13001 Cxa Tool Post Holder Set 6 Piece

Product Description

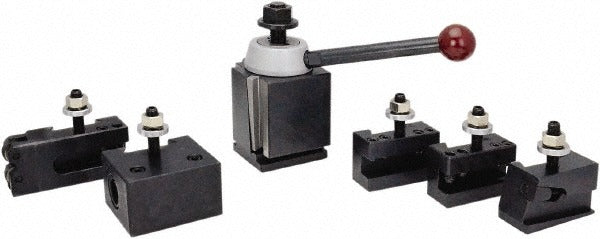

The VALUE COLLECTION 951-13001 is a six-piece CXA series tool post holder set designed for use on lathes with a swing range of 13 to 18 inches. The set includes six holders sized to a 20.50 mm bolt hole diameter, giving machinists the tooling variety needed to handle turning, boring, threading, and cutoff operations without swapping between incompatible holders. At 11.33 pounds, the set is built with the mass expected of CXA-class tooling. Coolant-through capability is not included. This set is suited for professional machine shops, apprentice programs, and production environments where a complete CXA holder assortment is needed out of the box.

CXA is a mid-range quick-change tool post series commonly fitted to lathes in the 13-to-18-inch swing class, which covers a wide range of manual engine lathes found in job shops and vocational training facilities. The six holders in this set allow a machinist to stage multiple tools simultaneously, reducing setup time between operations. The 20.50 mm bolt hole diameter aligns with standard CXA quick-change tool post sizing, making these holders a direct-fit addition to compatible CXA-style posts already on the machine.

Key Features

• Six-piece CXA series holder set covers multiple tooling operations in one kit
• Compatible with lathes in the 13 to 18 inch swing range
• 20.50 mm bolt hole diameter matches standard CXA quick-change post specifications
• No coolant-through passages, keeping the design straightforward for dry and conventional cutting
• Set weight of 11.33 pounds reflects solid, shop-grade construction

Compatibility

Designed as a direct-fit replacement or supplemental holder set for CXA series quick-change tool posts used on manual engine lathes with a swing of 13 to 18 inches.

Installation Notes

Installation should be performed by a qualified machinist or machine tool technician. Power down and lock out the lathe before mounting or adjusting any tool post holders. Verify that the bolt hole diameter and series designation of the existing quick-change post match CXA specifications before fitting these holders. Consult the lathe and tool post manufacturer documentation for proper clamping torque and tool height adjustment procedures.
