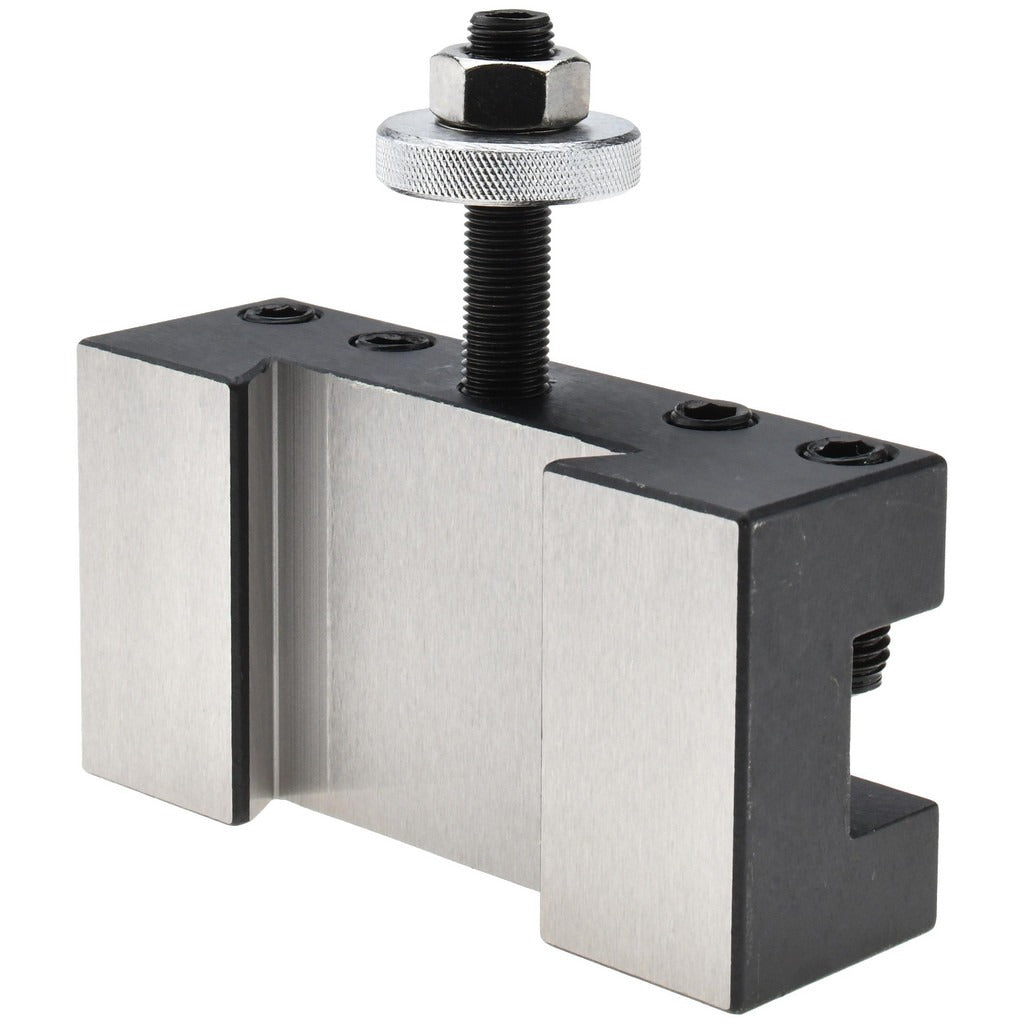

Value Collection 950-14011 Lathe Tool Post Holder Series Ca

Product Description

The VALUE COLLECTION 950-14011 is a Series CA, Number 1 turning and facing tool post holder designed for engine lathes with a swing range of 14 to 20 inches. It accepts cutting tools from 1/2 inch up to 1 inch in tool bit range and delivers a centerline height of 1-11/16 inches. At 2-1/2 inches overall height and 5.31 inches overall length, the holder provides a rigid, low-profile platform for facing and turning operations. It is intended for machinists and tool room technicians working on mid-size engine lathes in job shop, maintenance, or production environments.

This holder fits lathes in the 14-to-20-inch swing class, which covers a broad range of common bench and floor-model engine lathes found in industrial shops and vocational settings. It is suited for general turning and facing passes where stable tool positioning and repeatable centerline height are required. No through-coolant provision is included, making it appropriate for dry or flood-coolant setups where coolant is applied externally.

Key Features

• Series CA, Number 1 holder for lathes with 14 to 20 inch swing (400 to 500 mm)
• Accepts cutting tools from 1/2 inch to 1 inch tool bit range with a 1 inch maximum cutting tool size
• Centerline height of 1-11/16 inches for consistent tool alignment
• Overall height of 2-1/2 inches and overall length of 5.31 inches for a compact, rigid profile
• Turning and facing configuration supports a wide range of common lathe operations
• No through-coolant port — compatible with external flood or dry cutting setups

Compatibility

Designed for use with Series CA quick-change tool post systems on engine lathes with a swing of 14 to 20 inches (400 to 500 mm).

Installation Notes

Installation should be performed by a qualified machinist with the lathe powered off and the spindle fully stopped before mounting or adjusting any tool post holder. Confirm centerline height alignment with the lathe spindle axis before tightening the holder in place. Use appropriate set screws and wrenches as specified by the tool post system manufacturer. Follow all shop safety procedures when handling cutting tools during installation.
