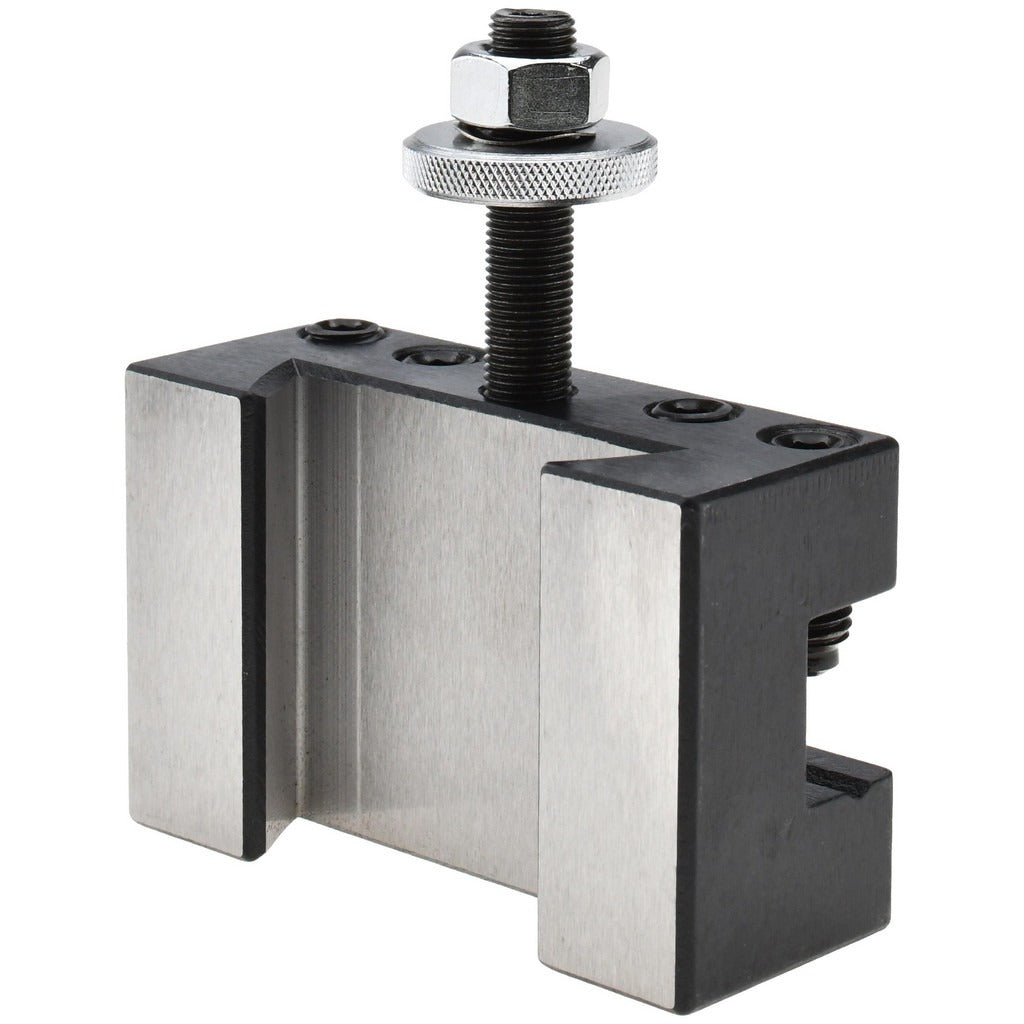

Value Collection 950-13021 Cxa Lathe Tool Post Holder

Product Description

The VALUE COLLECTION 950-13021 is a CXA Series Number 2 Boring, Turning, and Facing Tool Post Holder designed for use on lathes with a swing range of 13 to 18 inches. This holder accepts cutting tools and tool bits from 1/2 inch up to 3/4 inch, with a maximum cutting tool size of 3/4 inch. Overall height is 2-1/8 inches and overall length is 3.62 inches. The centerline height is 1-7/16 inches. Installed on a quick-change tool post system, it allows machinists to position and lock boring, turning, and facing tools with repeatable accuracy during production and job shop work.

This tool post holder is suited for manual engine lathes and turret lathes in the CXA size class, typically found in job shops, maintenance departments, and machine tool training environments. The CXA series accommodates lathes in the 13-to-18-inch swing range, making it a common fit for mid-size engine lathes used in general-purpose turning operations. It does not include through-coolant capability. Machinists performing external turning, facing passes, or boring operations will find this holder appropriate for those standard lathe workflows.

Key Features

• CXA Series quick-change tool post compatibility for mid-size lathes with 13 to 18 inch swing
• Accepts tool bits from 1/2 inch to 3/4 inch with 3/4 inch shank size
• Centerline height of 1-7/16 inches for accurate tool alignment
• Compact form factor at 3.62 inches overall length and 2-1/8 inches overall height
• Supports boring, turning, and facing operations in a single holder style
• No through-coolant port — suited for dry or flood-coolant-from-external-source setups

Compatibility

Designed for use with CXA Series quick-change tool post systems on lathes with a swing range of 13 to 18 inches (350 to 430 mm). Compatible shank size is 3/4 inch.

Installation Notes

Installation is performed by a machinist or tool and die technician. Power down and bring the lathe spindle to a complete stop before mounting or adjusting any tool post holder. Secure the holder firmly in the quick-change tool post and verify tool centerline height before taking a cut. Follow the lathe and tool post manufacturer guidelines for clamping torque and tool overhang limits.
