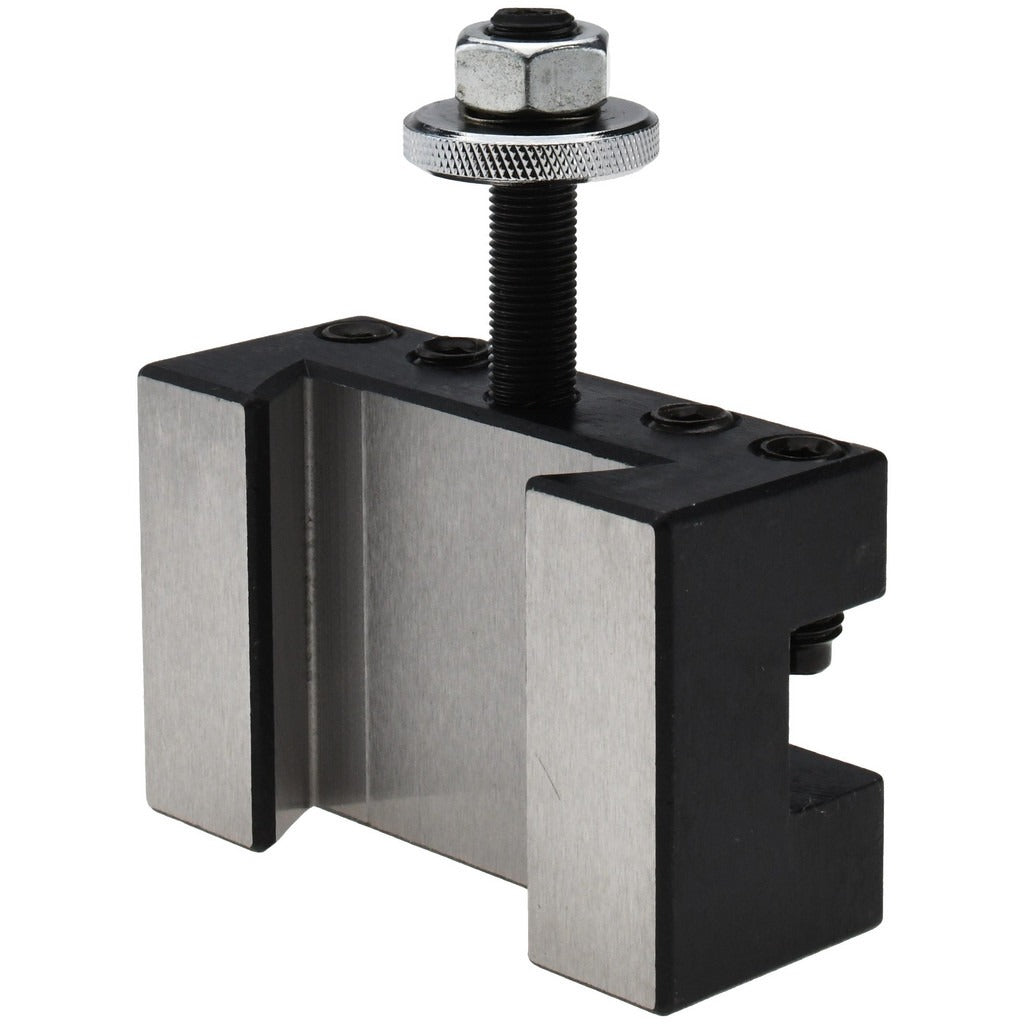

Value Collection 950-13011 Cxa Turning Facing Tool Post Holder

Product Description

The VALUE COLLECTION 950-13011 is a CXA series Number 1 turning and facing tool post holder designed for use on engine lathes with a swing range of 13 to 18 inches. It accepts tool bits from 1/4 inch up to 3/4 inch and provides a centerline height of 1-7/16 inches, making it a practical choice for general turning and facing operations on mid-size lathes. The holder measures 3.62 inches in overall length and 2-1/8 inches in overall height. Machinists and tool room professionals install this holder as part of a quick-change tool post system, allowing repeatable tool positioning without resetting centerline height between tool changes.

This holder is suited for metalworking shops, job shops, and maintenance facilities running mid-size engine lathes that fall within the 13 to 18 inch swing range. It is compatible with CXA series quick-change tool post systems and is used for standard external turning and facing passes. The Number 1 designation places it in the primary general-purpose holder category within the CXA system. No through-coolant capability is included, so it is best applied in dry cutting or flood-coolant-over-part setups.

Key Features

• CXA series quick-change compatibility for repeatable centerline positioning
• Accepts tool bits from 1/4 inch to 3/4 inch
• Centerline height of 1-7/16 inches
• Fits lathes with 13 to 18 inch swing (350 to 430 mm)
• Overall length of 3.62 inches and overall height of 2-1/8 inches
• No through-coolant — compatible with flood or dry cutting environments

Compatibility

Designed for use with CXA series quick-change tool post systems on engine lathes with a swing of 13 to 18 inches (350 to 430 mm). Accepts tool bits ranging from 1/4 inch to 3/4 inch.

Installation Notes

Installation is performed by machinists and tool room technicians. Power down and disengage the lathe spindle before mounting or adjusting any tool post holder. Secure the holder firmly in the quick-change post using the manufacturer-specified locking mechanism and verify centerline alignment before taking a cut. Inspect tool bit clamping screws for proper seating before each use.
