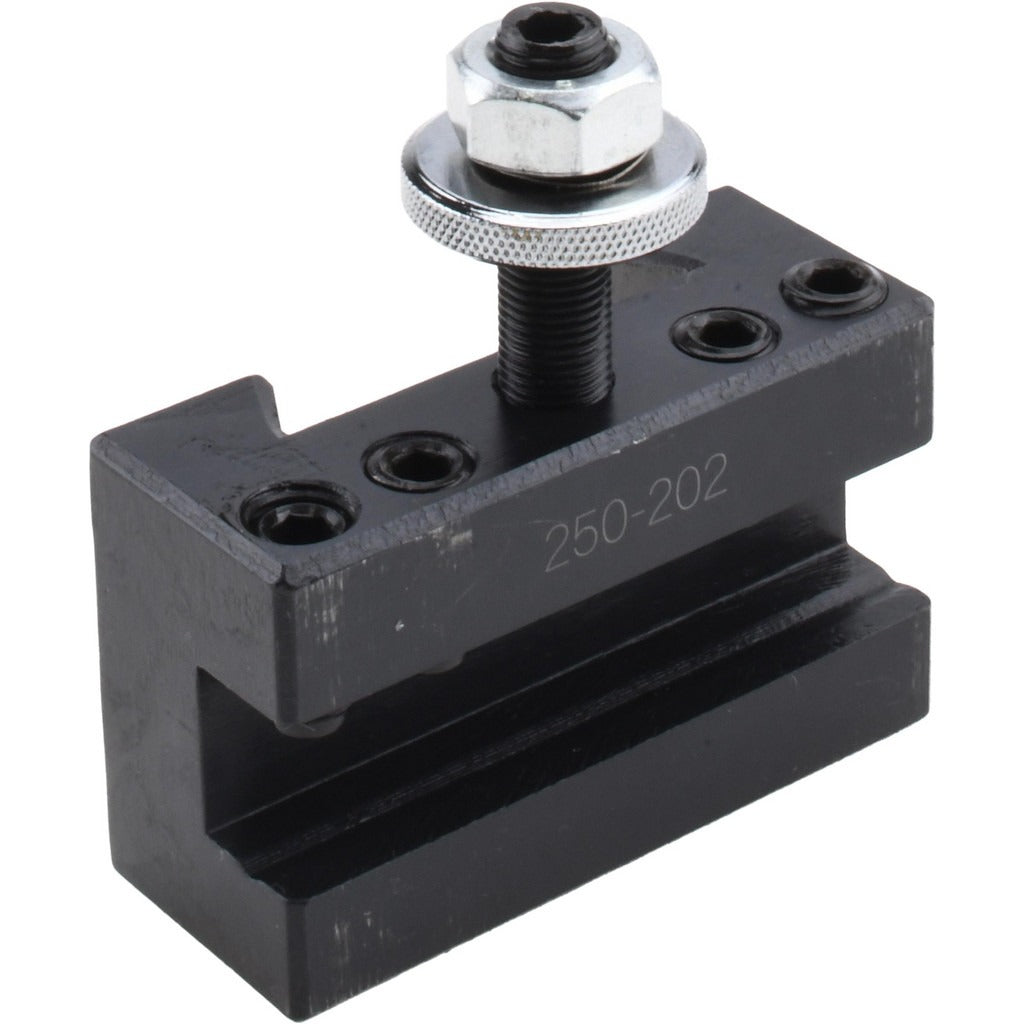

Value Collection 950-12021 Bxa No. 2 Boring Turning Holder

Product Description

The VALUE COLLECTION 950-12021 is a BXA-series No. 2 boring, turning, and facing tool post holder designed for manual lathes with a swing range of 10 to 15 inches. It accepts cutting tools from 1/4 inch up to 5/8 inch, with a maximum cutting tool size of 5/8 inch and a 1/2-inch shank size. The holder measures 1.75 inches in overall height and 3.15 inches in overall length, with a centerline height of 1.125 inches. It is installed by machinists and toolroom technicians on engine lathes and toolroom lathes as a quick-change tool post component, providing repeatable tool positioning during boring, turning, and facing operations.

This holder fits lathes in the 10-to-15-inch swing class, which covers a wide range of bench and floor-model engine lathes commonly found in job shops, maintenance facilities, and vocational training environments. It is suited for general-purpose turning operations where quick tool changes between boring bars, turning tools, and facing tools are required. Through-coolant is not supported by this holder. The compact footprint makes it practical for use on smaller lathes where clearance between the carriage and workpiece is limited.

Key Features

• BXA series quick-change tool post holder for lathes with 10 to 15 inch swing
• Accepts tool bit range from 1/4 inch to 5/8 inch
• 1/2-inch shank size for secure mounting in BXA-compatible quick-change tool post systems
• Centerline height of 1.125 inches supports accurate tool tip alignment to spindle centerline
• Supports boring, turning, and facing operations in a single holder style
• No through-coolant passages, suitable for dry or flood coolant applied externally

Compatibility

Designed as an OEM-style replacement and standard tooling component for BXA-series quick-change tool post systems on engine lathes with a swing of 10 to 15 inches (330 to 380 mm).

Installation Notes

Installation is performed by a machinist or toolroom technician. Before mounting or removing any tool post holder, the lathe spindle must be stopped completely and the machine placed in a safe, locked-out state per shop lockout/tagout procedures. The holder should be seated fully in the quick-change tool post and the locking cam or screw tightened firmly before operation. Tool tip height should be verified against spindle centerline using a height gauge or reference bar before taking a cut.
