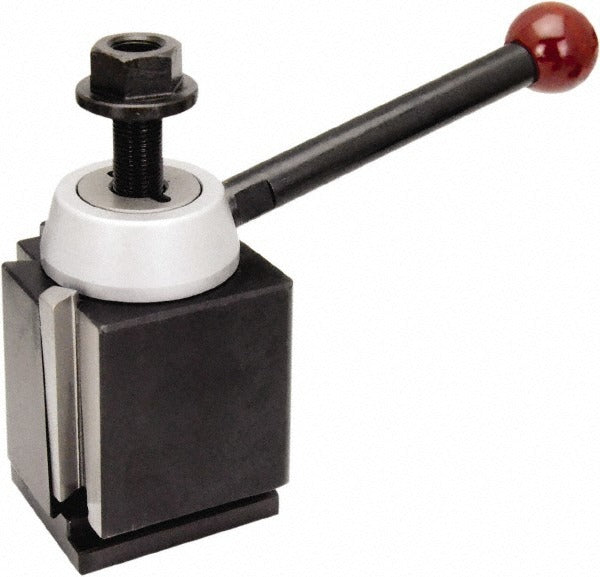

Value Collection 950-11111 Tool Post Series 100

Product Description

The VALUE COLLECTION 950-11111 is a Series 100 tool post designed for use on engine lathes with a swing range of 9 to 12 inches. It mounts to the lathe compound rest via a 0.5625-inch bolt hole and stands 3.875 inches in height, providing a stable platform for securing cutting tools during turning operations. Weighing 2.03 pounds, this tool post offers a rigid, low-profile setup suited for light to medium-duty lathe work. It is a standard replacement or upgrade component installed by machinists and toolroom operators working with small to mid-size engine lathes.

This tool post is appropriate for manual engine lathes found in job shops, maintenance facilities, vocational training environments, and small-scale production settings. The Series 100 designation corresponds to a common sizing standard used across rocker-style tool post systems. It is intended for lathes with a 9- to 12-inch swing, making it compatible with a widely used range of benchtop and floor-model engine lathes in that size class.

Key Features

• Series 100 sizing for lathes with 9 to 12 inch swing
• Tool post height of 3.875 inches for consistent tool centerline alignment
• Bolt hole diameter of 0.5625 inches (9/16 inch) for standard compound rest mounting
• Compact footprint at 2.83 inches wide and 2.83 inches in length
• Lightweight at 2.03 pounds for easy handling during setup changes

Compatibility

Designed as an OEM-style replacement or direct-fit tool post for engine lathes with a swing range of 9 to 12 inches accepting a Series 100 tool post.

Installation Notes

Installation is performed by a machinist or qualified toolroom technician. The lathe must be powered off and brought to a full stop before removing or installing any tool post. The tool post is secured to the compound rest T-slot using the existing stud and nut through the 0.5625-inch bolt hole. Verify tool height alignment to spindle centerline using a reference gauge before resuming cutting operations.
