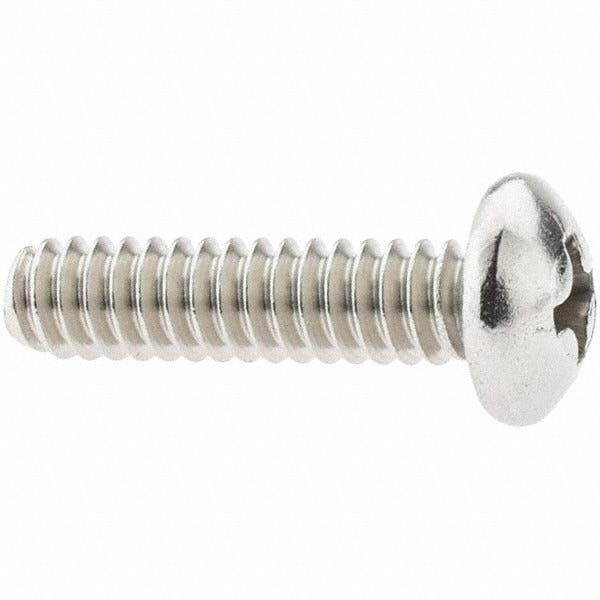

Value Collection 94675 Pan Head Machine Screw 10-24 X 3/4 in

Product Description

The VALUE COLLECTION 94675 is a 10-24 UNC pan head Phillips machine screw with a 3/4-inch length under head, manufactured from 18-8 stainless steel with a bright, uncoated finish. This screw is a standard inch-series fastener used across mechanical assemblies, electrical enclosures, HVAC equipment panels, and general trade applications wherever a corrosion-resistant, reusable threaded fastener is required. The 10-24 thread designation indicates a No. 10 diameter with 24 threads per inch, a coarse unified national thread form. Tradespeople and assembly technicians install these screws using a standard Phillips driver or bit. The minimum order quantity is 50 pieces per purchase.

This fastener is suited for light-duty panel assembly, equipment covers, junction boxes, and structural bracketing in both residential and commercial settings. The pan head profile provides a low-profile, wide bearing surface that distributes clamping load across the mating material. The bright uncoated finish makes the 18-8 stainless steel alloy itself the primary means of corrosion resistance, making this screw appropriate for indoor and moderately humid environments typical of mechanical rooms, electrical panels, and HVAC equipment interiors.

Key Features

• 10-24 UNC thread form — 24 threads per inch, No. 10 diameter
• 3/4-inch length under head for consistent engagement depth measurement
• Pan head profile with wide bearing surface for panel and cover applications
• Phillips drive compatible with standard Phillips drivers and power bits
• 18-8 stainless steel construction provides corrosion resistance without a coating
• Bright uncoated finish — no plating to chip, flake, or contaminate assemblies

Compatibility

Designed as a general-purpose inch-series machine screw for use in any application requiring a 10-24 UNC threaded fastener with a pan head Phillips drive in 18-8 stainless steel.

Installation Notes

Install using a Phillips No. 2 driver or equivalent power bit; avoid over-torquing, which can strip the 18-8 stainless steel thread or cam out the drive recess. Ensure the mating hole is tapped to a 10-24 UNC specification before installation. In electrical enclosures or panel work, follow applicable NEC requirements for fastener use and equipment grounding. Do not mix stainless steel fasteners with dissimilar metals in contact with electrolytes, as galvanic corrosion may result.
