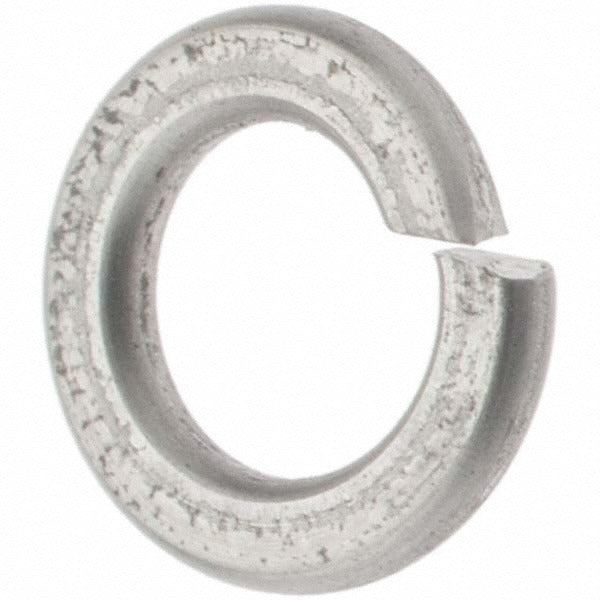

Value Collection 93773 Split Lock Washer 6 Screw 18-8 Ss

Product Description

The VALUE COLLECTION 93773 is a No. 6 screw split lock washer made from 18-8 stainless steel. Split lock washers apply spring tension against a fastener to resist loosening caused by vibration or thermal cycling. The 93773 has an inside diameter range of 0.141 to 0.148 inches, an outside diameter range of 0.141 to 0.250 inches, and a thickness of 0.031 inches. The 18-8 stainless steel construction provides corrosion resistance suitable for wet, outdoor, or chemically exposed environments. These washers are installed by electricians, plumbers, HVAC technicians, and mechanical contractors wherever a No. 6 fastener requires a locking element.

This split lock washer is intended for use with No. 6 machine screws in light-duty fastening applications. Common installation scenarios include panel assembly, equipment mounting, and fixture attachment in residential and light commercial work. The inch-system dimensions make this washer compatible with standard SAE No. 6 hardware. The stainless steel grade is appropriate for corrosive or moisture-prone environments where carbon steel hardware would be unsuitable.

Key Features

• 18-8 stainless steel construction resists corrosion in wet and outdoor environments
• Split lock design applies spring tension to resist fastener back-out under vibration
• Inside diameter range of 0.141 to 0.148 inches fits No. 6 screw shanks
• Outside diameter range of 0.141 to 0.250 inches
• Thickness of 0.031 inches for consistent locking force
• Inch-measurement system for compatibility with standard SAE fasteners

Compatibility

Designed for use with No. 6 inch-system machine screws as an OEM-style locking element in general mechanical, electrical, and plumbing fastening applications.

Installation Notes

Install the split lock washer between the fastener head and the mating surface before driving the screw. Ensure the split ends are fully compressed flush when the fastener is torqued to the appropriate specification for the application. De-energize or shut off any equipment before performing fastening work on live panels or mechanical assemblies. No special tools are required beyond standard hand or power drivers.
