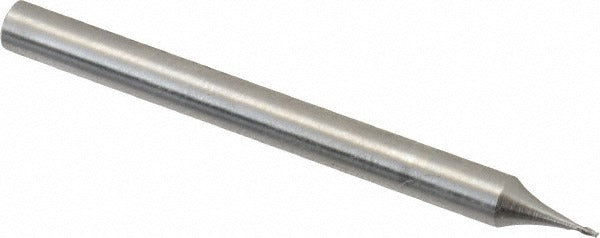

Value Collection 934-000-193 Square End Mill Hss 2 Flute

Product Description

The VALUE COLLECTION 934-000-193 is a square end mill designed for precision milling operations in metal, plastic, and composite materials. This single-end tool features a 1/64 inch cutting diameter, a 1/32 inch length of cut, and a 1/8 inch straight shank. Constructed from high speed steel (HSS) with a bright uncoated finish, it is built for general-purpose milling where coating is not required. The 40-degree helix angle promotes efficient chip evacuation and smooth cutting action. With two flutes and a centercutting design, this end mill can be used for plunging, slotting, and peripheral milling at small scales.

This end mill is suited for light-duty milling work requiring tight tolerances in a stub-length configuration. The 1-1/2 inch overall length and compact cutting geometry make it well suited for shallow pockets, fine detail work, and small-feature machining on CNC mills and manual milling machines. The right-hand cut and right-hand flute orientation are standard for conventional milling setups. Machinists working with miniature components, instrument parts, or small-scale metalwork will find this tool appropriate for their applications.

Key Features

• 1/64 inch cutting diameter with a diameter tolerance of -0.0010 to 0.000 inches for precise fitment
• Centercutting design allows direct plunge entry into workpieces
• 40-degree helix angle for improved chip flow and reduced cutting forces
• High speed steel construction provides durability across a range of workpiece materials
• Bright uncoated finish suits general-purpose milling without added coating cost
• Stub-length geometry improves rigidity and minimizes deflection at small diameters

Compatibility

Designed as an OEM-style replacement or direct-use end mill for standard 1/8 inch straight-shank collet systems on CNC machining centers and manual milling machines accepting stub-length tooling in Series 856 geometry.

Installation Notes

Installation and tool changes should be performed by a qualified machinist with the spindle fully powered down and locked out. Secure the 1/8 inch shank in a matched collet or end mill holder and verify runout before operation. At very small diameters, excessive feed rate or improper depth of cut can cause tool breakage — follow manufacturer-recommended cutting parameters for HSS tooling at this diameter range. Inspect the cutting edges under magnification before use to confirm the tool is free of chips or damage.
