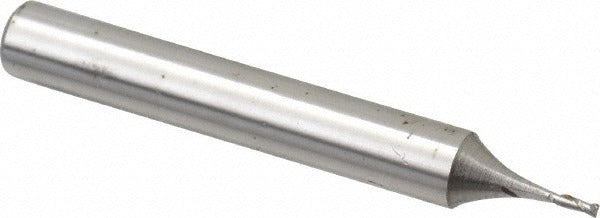

Value Collection 934-000-115 Square End Mill Hss 2 Flute

Product Description

The VALUE COLLECTION 934-000-115 is a single-end, square-profile end mill designed for precision milling in metalworking and machining applications. Built from high speed steel with a bright uncoated finish, this tool features a 0.035-inch cutting diameter and a 40-degree helix angle that supports efficient chip evacuation and smooth cutting action. With two flutes and a centercutting geometry, it is capable of plunging directly into workpiece material as well as performing peripheral and slot milling passes. Machinists and toolroom professionals install this tool in CNC machining centers and manual knee mills where small-diameter work is required.

This end mill is suited for small-feature milling tasks including slots, pockets, and profiles in ferrous and non-ferrous materials. The 0.035-inch diameter and 0.105-inch length of cut make it well matched to fine detail work and confined geometries where a larger tool cannot reach. The straight shank at 3/16 inch (0.1875 inch decimal) seats in standard collet systems. Its regular-length classification and 1.5-inch overall length keep it rigid at depth, reducing deflection risk during light finishing cuts.

Key Features

• 0.035-inch cutting diameter with a tight mill diameter tolerance of -0.0010 to +0.0000 inch for close dimensional control
• High speed steel construction provides toughness and regrindability
• 40-degree helix angle promotes smooth chip flow and reduces cutting forces
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand cut and right-hand spiral flute configuration — standard for conventional and climb milling setups
• Bright uncoated finish — suitable for use with cutting fluids on a range of materials

Compatibility

Designed as an OEM-style replacement or standard tooling option for machining setups requiring a 3/16-inch straight shank, single-end square end mill in the Series 846 family.

Installation Notes

Installation is performed by qualified machinists or toolroom personnel. Secure the straight shank in a properly sized collet or end mill holder and torque the drawbar or collet nut according to the machine manufacturer's specifications. Confirm tool runout with a dial indicator before beginning cuts. Always power down and lock out the spindle before changing tooling, and verify that shank diameter matches the collet bore exactly to prevent slippage during operation.
