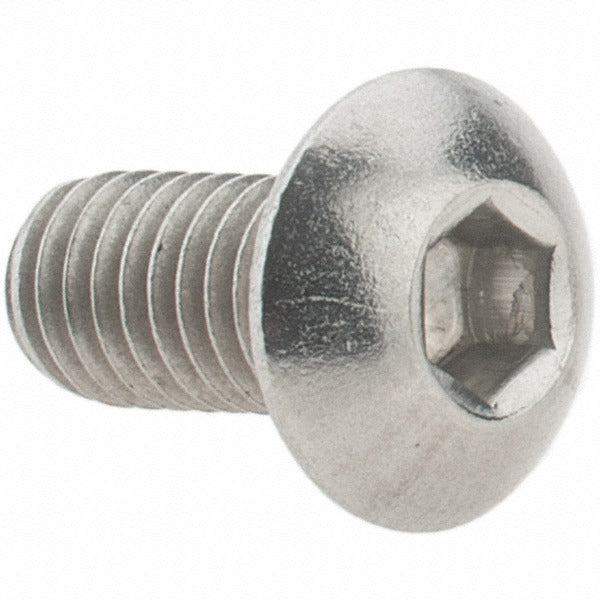

Value Collection 93094 Button Socket Cap Screw 10-32 Unf

Product Description

The VALUE COLLECTION 93094 is a button socket cap screw designed for precision fastening in applications requiring a low-profile head and a secure hex socket drive. Manufactured from 18-8 stainless steel with a bright, uncoated finish, this fastener provides solid corrosion resistance in general-purpose environments. The 10-32 UNF thread with a 3/8 inch length under head suits moderate-depth threaded assemblies. The button head geometry distributes clamp load over a wider bearing surface compared to a standard socket head, making it a common choice where clearance above the fastened surface is limited.

This fastener is used across mechanical, electrical, HVAC panel, and light industrial assembly applications. The 10-32 thread is a standard unified fine thread size widely specified in instrumentation enclosures, fan guards, electrical panels, and bracket assemblies. It is installed by HVAC technicians, electricians, equipment assemblers, and maintenance trades wherever a flush or near-flush fastener profile is required and hex key access is available.

Key Features

• Button head provides low-profile, wide-bearing-surface fastening
• 18-8 stainless steel construction offers corrosion resistance in general-purpose environments
• 10-32 UNF right-hand thread for precise, fine-pitch engagement
• 1/8 inch hex socket drive for standard Allen key or hex bit installation
• Bright, uncoated finish suitable for indoor and light outdoor use
• Meets ANSI/ASME B18.3 and ASTM F837 fastener standards

Compatibility

Designed as a standard 10-32 UNF button socket cap screw suitable for use in any application specifying ANSI/ASME B18.3 socket cap screws with a button head profile and 18-8 stainless steel material.

Installation Notes

Install with a 1/8 inch hex key or matching hex bit driver. Confirm the mating threaded hole or nut meets 10-32 UNF thread form and Class 3A fit tolerances before assembly. Do not exceed the torque capacity appropriate for 18-8 stainless steel fasteners at this diameter, as stainless fasteners are susceptible to galling if driven too aggressively without lubrication. Power down any equipment before servicing panels or enclosures where these fasteners are used.
