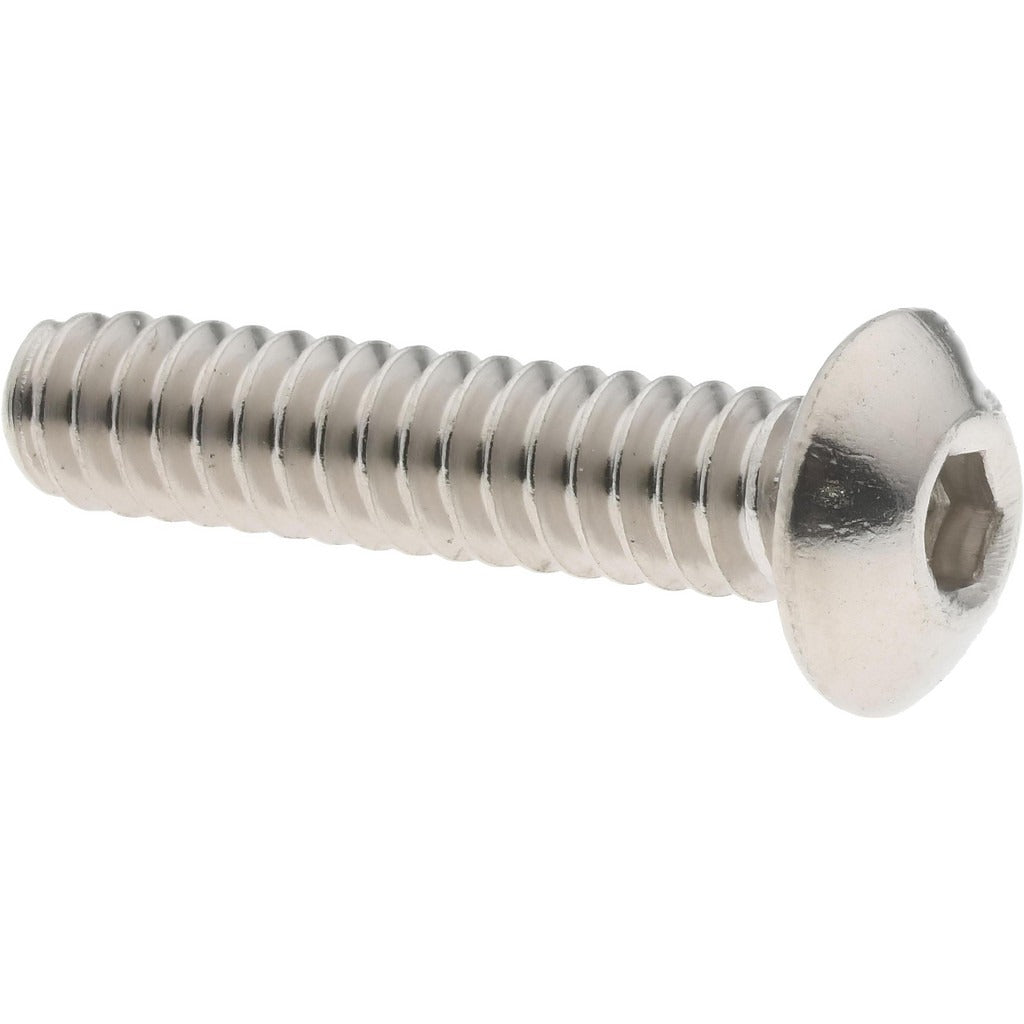

Value Collection 93067 Button Socket Cap Screw 6-32 X 5/8

Product Description

The VALUE COLLECTION 93067 is a 6-32 x 5/8 inch button socket cap screw manufactured from 18-8 stainless steel with a bright uncoated finish. The low-profile button head seats flush against mating surfaces in applications where a rounded, low-clearance head is required. Drive engagement is through a 5/64 inch hex socket, requiring an appropriately sized hex key or Allen driver. The screw is fully threaded to the head with a right-hand UNC thread form and a Class 3A thread fit, providing a controlled tolerance suitable for precision assemblies. Meets ANSI/ASME B18.3 and ASTM F837 fastener standards. Maintenance technicians, machinists, and equipment assemblers regularly specify this fastener for panel, cover, and bracket attachment.

This fastener is suited for light- to medium-duty assembly work across HVAC equipment panels, electrical enclosures, plumbing fixture brackets, and general mechanical assemblies where a low-profile head and corrosion-resistant material are required. The 18-8 stainless steel construction provides adequate corrosion resistance in mildly wet or humid environments, making it appropriate for both indoor and outdoor equipment installations. Its 6-32 UNC thread is among the most common small-diameter machine screw sizes, so it mates with standard tapped holes and threaded inserts found in commercial and residential equipment.

Key Features

• Button head profile reduces clearance requirements and provides a clean finished appearance
• 18-8 stainless steel construction resists corrosion in moist or humid service environments
• 5/64 inch hex socket drive for standard Allen key or hex bit installation
• Fully threaded shank on 6-32 UNC, Class 3A fit for controlled thread tolerance
• Meets ANSI/ASME B18.3 and ASTM F837 dimensional and material standards
• Bright uncoated finish maintains true stainless steel appearance without added coating thickness

Compatibility

Designed as a standard 6-32 UNC button socket cap screw for use in any application requiring a 6-32 tapped hole or threaded insert and a low-profile button head fastener per ANSI/ASME B18.3.

Installation Notes

Installation requires a 5/64 inch hex key or matching Allen bit driver. Verify the mating tapped hole is clean and free of debris before driving the screw to avoid cross-threading the 6-32 UNC thread. Do not exceed the torque capacity of the 18-8 stainless alloy, as stainless fasteners are susceptible to galling if driven at excessive speed or without lubrication. Follow applicable equipment manufacturer torque guidelines and relevant assembly codes when used in electrical or mechanical enclosures.
