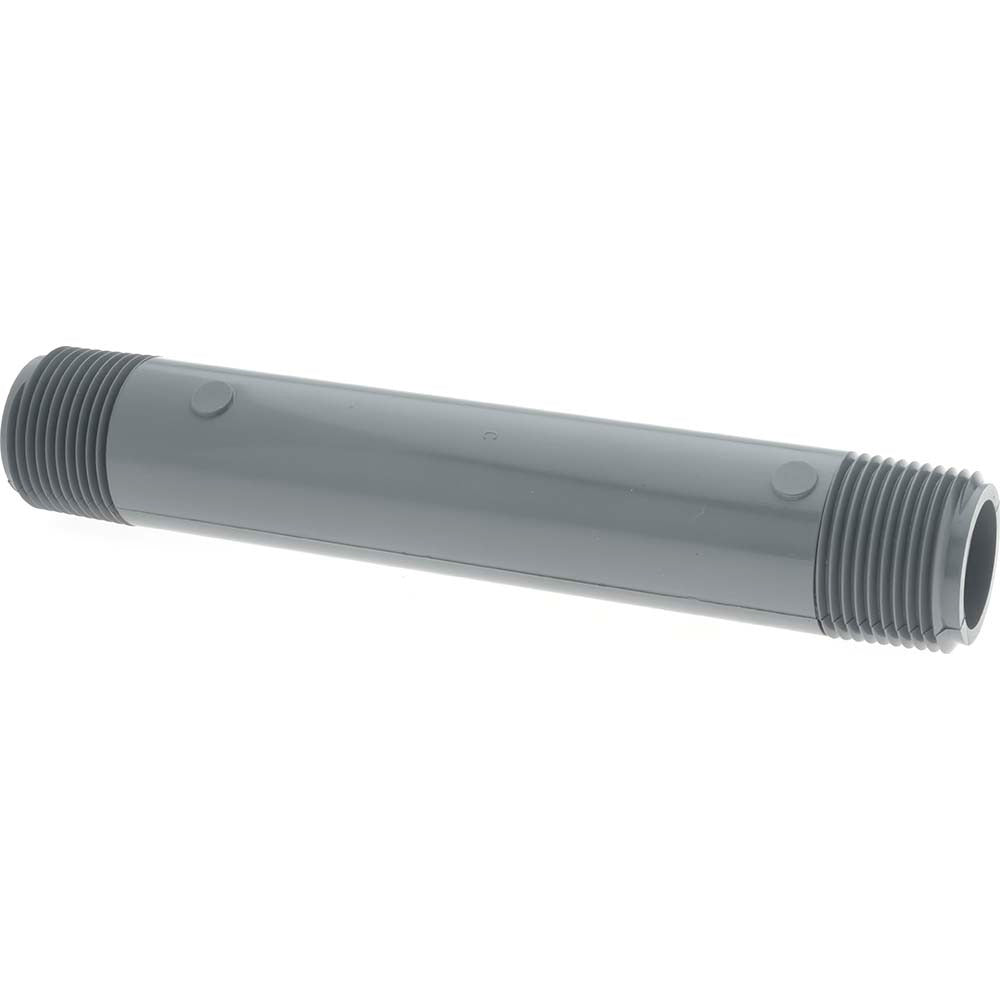

Value Collection 883-060C Cpvc Pipe Nipple 3/4 in Sch 80

Product Description

The VALUE COLLECTION 883-060C is a Schedule 80 CPVC threaded pipe nipple designed for use in pressure piping systems where corrosion resistance and higher temperature tolerance are required. Measuring 3/4 inch in pipe size and 6 inches in length, this gray nipple is manufactured from chlorinated polyvinyl chloride, a material suited for hot and cold water distribution, chemical handling lines, and industrial fluid systems. The threaded ends allow direct connection to standard CPVC or compatible fittings. Licensed plumbers and pipefitters are the primary installers, though experienced mechanical contractors work with these components routinely in commercial and industrial settings.

This nipple is appropriate for residential and light commercial hot and cold water supply lines, as well as industrial process piping where chemical resistance is a priority. Schedule 80 wall thickness provides additional pressure capacity compared to Schedule 40, making it suitable for applications with elevated operating pressures. The gray color is standard for Schedule 80 CPVC piping systems, aiding in quick visual identification during inspection and maintenance.

Key Features

• Schedule 80 wall thickness for higher pressure ratings compared to Schedule 40
• CPVC material offers superior heat and chemical resistance versus standard PVC
• 3/4 inch pipe size with threaded ends for straightforward connection to compatible fittings
• 6 inches overall length suits close-quarter piping runs and riser connections
• Gray color standard for Schedule 80 systems, supporting quick visual identification

Compatibility

Designed as an OEM-style replacement or new-installation component compatible with 3/4 inch Schedule 80 CPVC threaded piping systems.

Installation Notes

Installation should be performed by a licensed plumber in accordance with the International Plumbing Code and applicable local codes. Shut off the water supply and relieve system pressure before removing or installing any pipe nipple. Use CPVC-rated thread sealant or tape rated for plastic pipe threads — do not use petroleum-based compounds, which can degrade CPVC material. Hand-tighten first, then snug with a strap wrench to avoid over-torquing and cracking the fitting.
