Value Collection 87NFP Hex Nut 7/8-9 Grade 2 Steel

Product Description

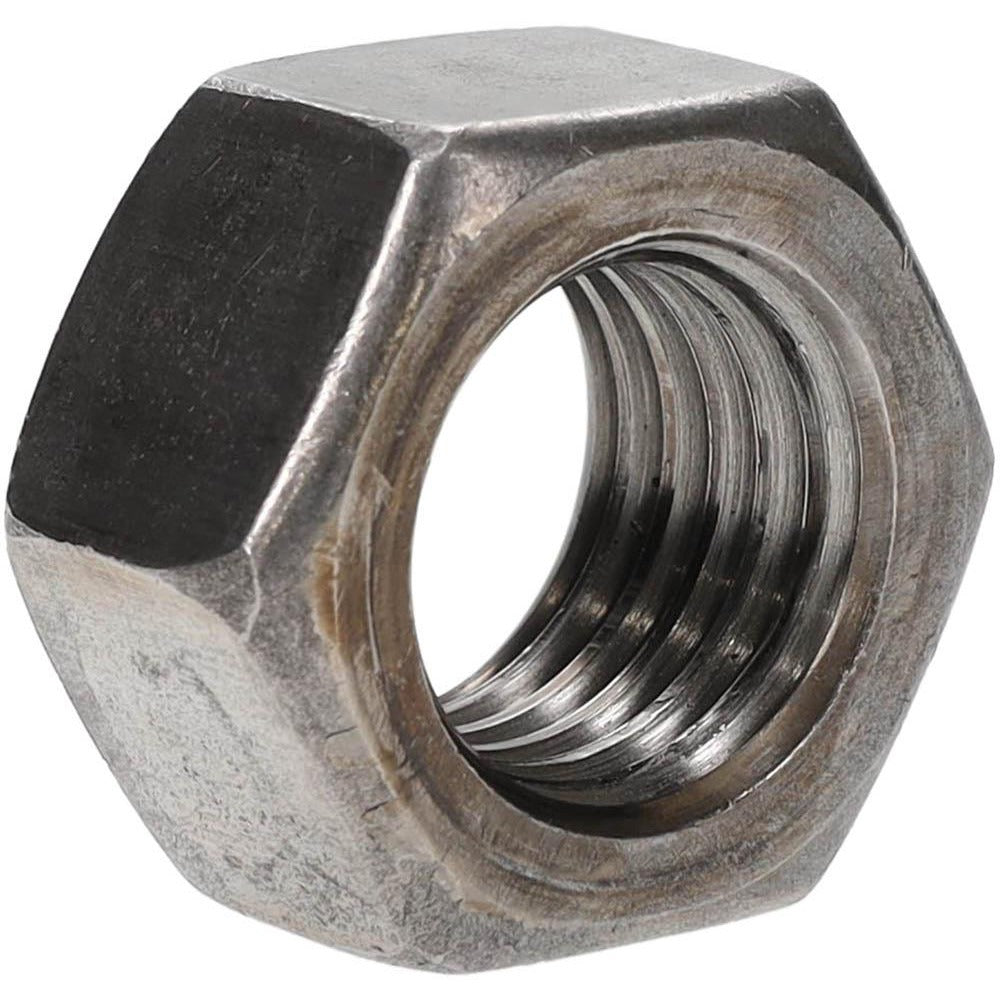

The VALUE COLLECTION 87NFP is a 7/8-9 hex nut manufactured from SAE J995 Grade 2 steel with a bright, uncoated finish. It features a right-hand UN thread and measures 1-5/16 inches across the flats with a height of 0.75 inches. Hardness is rated at 68 HRB, meeting ANSI ASME B18.2.2 fastener standards. This nut is suited for general mechanical and structural assembly work and is installed by maintenance technicians, millwrights, pipefitters, and other trade professionals requiring a standard imperial hex nut in Grade 2 steel.

This hex nut is appropriate for general-purpose bolted connections in residential, commercial, and light industrial applications. It is used wherever a 7/8-9 UN thread fastener is required, including structural framing, equipment mounting, and mechanical assembly. The uncoated finish makes it suitable for dry indoor environments or applications where a supplemental coating or plating will be applied after installation.

Key Features

• 7/8-9 UN right-hand thread for standard imperial fastener compatibility
• SAE J995 Grade 2 steel construction rated at 68 HRB hardness
• Bright, uncoated finish — accepts secondary coatings as needed
• Meets ANSI ASME B18.2.2 dimensional standards
• 1-5/16 inch width across flats; 1.516 inches across points
• Height of 0.75 inches for full thread engagement depth

Compatibility

Designed for use with any 7/8-9 UN threaded bolt or stud conforming to standard imperial fastener dimensions per ANSI ASME B18.2.2.

Installation Notes

Install using a standard 1-5/16 inch open-end, box-end, or socket wrench. Ensure mating bolt threads are clean and free of debris before assembly. De-energize and lock out equipment before replacing fasteners on mechanical or electrical systems. Consult applicable codes and torque specifications for the specific joint application, as torque requirements vary by assembly.
