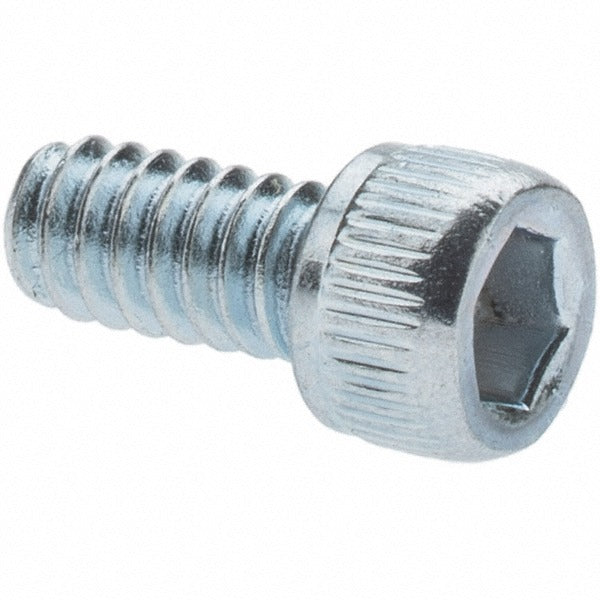

Value Collection 872117PR Hex Socket Cap Screw 10-24 Unc

Product Description

The VALUE COLLECTION 872117PR is a hex socket cap screw designed for mechanical fastening applications requiring a clean, recessed drive profile. Sized at 10-24 UNC with a 1-3/4 inch length under head, it accepts a 5/32 inch hex drive. Constructed from alloy steel with a zinc-plated finish, the screw delivers solid tensile strength and basic corrosion resistance for indoor and light industrial use. It is partially threaded, which allows the unthreaded shank to provide a precise bearing surface in clearance holes. Meets ASME B18.8 and ASTM A574 standards. Typically installed by machinists, millwrights, and maintenance mechanics in fixture, frame, and equipment assembly work.

This screw is suited for light to medium-duty fastening tasks on metal components, enclosures, brackets, and machine frames. Its 10-24 UNC thread designation follows the Unified National Coarse thread standard, making it a common choice for through-hole and tapped-hole assemblies across general manufacturing and maintenance environments. The zinc coating provides adequate protection in dry indoor conditions. Sold individually but subject to a minimum order quantity of 100 pieces per order.

Key Features

• 10-24 UNC partially threaded shank — unthreaded section provides precise shank fit in clearance holes
• 1-3/4 inch length under head for reliable thread engagement depth
• 5/32 inch hex socket drive for use with standard Allen keys or hex bit drivers
• Alloy steel construction meets ASTM A574 mechanical requirements
• Zinc-plated finish for basic corrosion protection in dry indoor environments
• Conforms to ASME B18.8 dimensional standard

Compatibility

Designed as a standard 10-24 UNC hex socket cap screw suitable for tapped holes conforming to Unified National Coarse thread specifications in general mechanical and industrial assembly applications.

Installation Notes

Installation requires a calibrated 5/32 inch hex key or socket bit driver. Verify the mating tapped hole is clean and free of debris before driving. Do not exceed the torque rating for the 10-24 thread class as defined by applicable fastener standards. Follow applicable safety and lockout procedures when servicing equipment prior to fastener removal or replacement.
