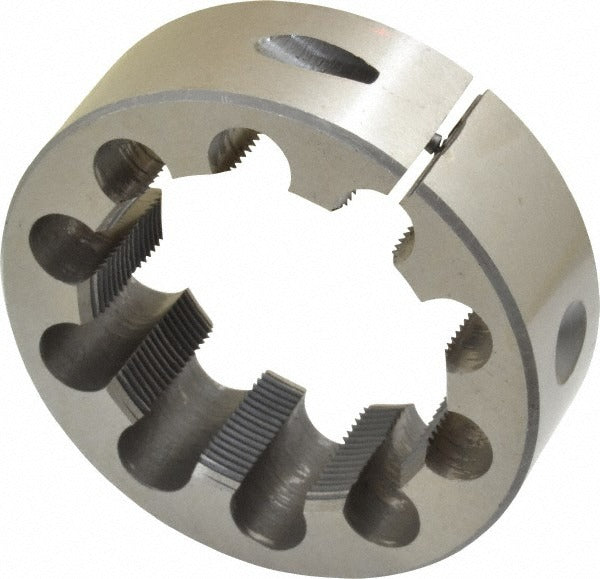

Value Collection 84048460 Round Die 2-18 3in Od Hss

Product Description

The VALUE COLLECTION 84048460 is a round threading die designed to cut external threads on rod, bolt stock, and round bar stock. With a 2-18 thread size and a 3-inch outside diameter, this die fits standard die stocks and die holders sized for 3-inch OD tooling. Constructed from high-speed steel (HSS), it maintains cutting edge integrity through repeated use on ferrous and non-ferrous materials. The adjustable design allows the operator to fine-tune thread fit by slightly opening or closing the die body with a set screw adjustment, giving control over thread tolerance and reducing the need for multiple passes on difficult materials.

This die is suited for machine shops, maintenance and repair operations, and tool rooms where field-threading or re-threading of fasteners and threaded rod is required. The right-hand thread configuration covers the vast majority of standard fastener applications. It is appropriate for manual use in a die stock or for use with a die-driving fixture on a drill press or lathe tailstock. Machinists, millwrights, and maintenance technicians are the primary users in industrial and commercial settings.

Key Features

• 2-18 thread size for cutting external threads on compatible rod or stock
• 3-inch outside diameter fits standard die stocks designed for 3-inch OD dies
• High-speed steel construction for durability and heat resistance during threading operations
• Adjustable body allows thread fit fine-tuning without changing tooling
• Right-hand thread direction matches standard fastener orientation
• Single-piece round die format compatible with conventional hand die stocks

Compatibility

Designed for use in standard die stocks and holders accepting a 3-inch outside diameter round die. Fits manual and bench-mounted die-driving setups configured for 3-inch OD tooling.

Installation Notes

Threading dies should be installed and secured in a properly sized die stock before use. Ensure the set screw engages the die adjustment slot squarely before applying torque. Apply cutting fluid appropriate to the workpiece material to extend die life and improve thread finish. Inspect the workpiece diameter against published thread data before cutting to avoid overloading the die.
