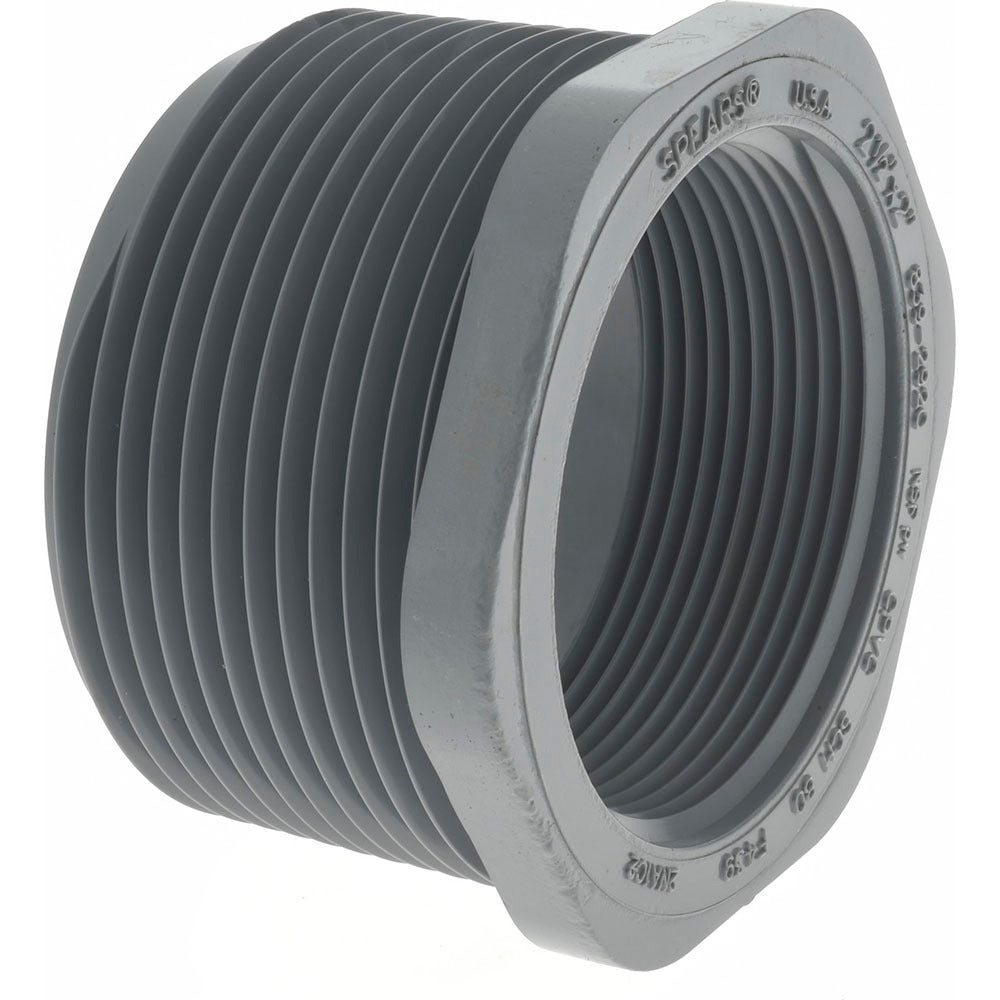

Value Collection 839-292C Cpvc Pipe Bushing Sch 80

Product Description

The VALUE COLLECTION 839-292C is a Schedule 80 CPVC pipe bushing designed to reduce a 2.5-inch female threaded opening to a 2-inch male threaded connection. Constructed from chlorinated polyvinyl chloride (CPVC), this bushing handles the elevated temperatures and pressures common in industrial and commercial piping systems. The MIPT x FIPT end configuration allows direct threaded installation into existing female-threaded fittings without additional adapters. At 0.63 pounds, it is a straightforward drop-in component for plumbing and process piping applications requiring a concentric threaded reduction.

This bushing is suited for hot and cold water supply lines, chemical distribution systems, and industrial process piping where CPVC material is specified. Schedule 80 wall thickness provides greater pressure tolerance compared to Schedule 40, making it appropriate for higher-demand commercial and light industrial installations. Licensed plumbers and pipefitters typically install this fitting during new construction or system modification where a pipe size reduction is needed at a threaded junction.

Key Features

• CPVC construction rated for elevated temperature and pressure service
• Schedule 80 wall thickness for increased pressure capacity
• MIPT x FIPT end connections for all-threaded, solvent-free assembly
• 2.5 x 2 inch concentric reduction in a single fitting
• Lightweight at 0.63 pounds for easy handling in tight spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting compatible with Schedule 80 CPVC threaded piping systems using 2.5-inch female and 2-inch male NPT connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local plumbing codes and ASTM standards for CPVC threaded fittings. Shut off and depressurize the system completely before removing any existing fittings. Use CPVC-compatible thread sealant or PTFE tape on male threads — do not use petroleum-based pipe dopes, which can degrade CPVC material. Hand-tighten first, then apply only enough wrench torque to achieve a leak-free seal without stressing the fitting body.
