Value Collection 839-073 Pvc Reducer Bushing Sch 80

Product Description

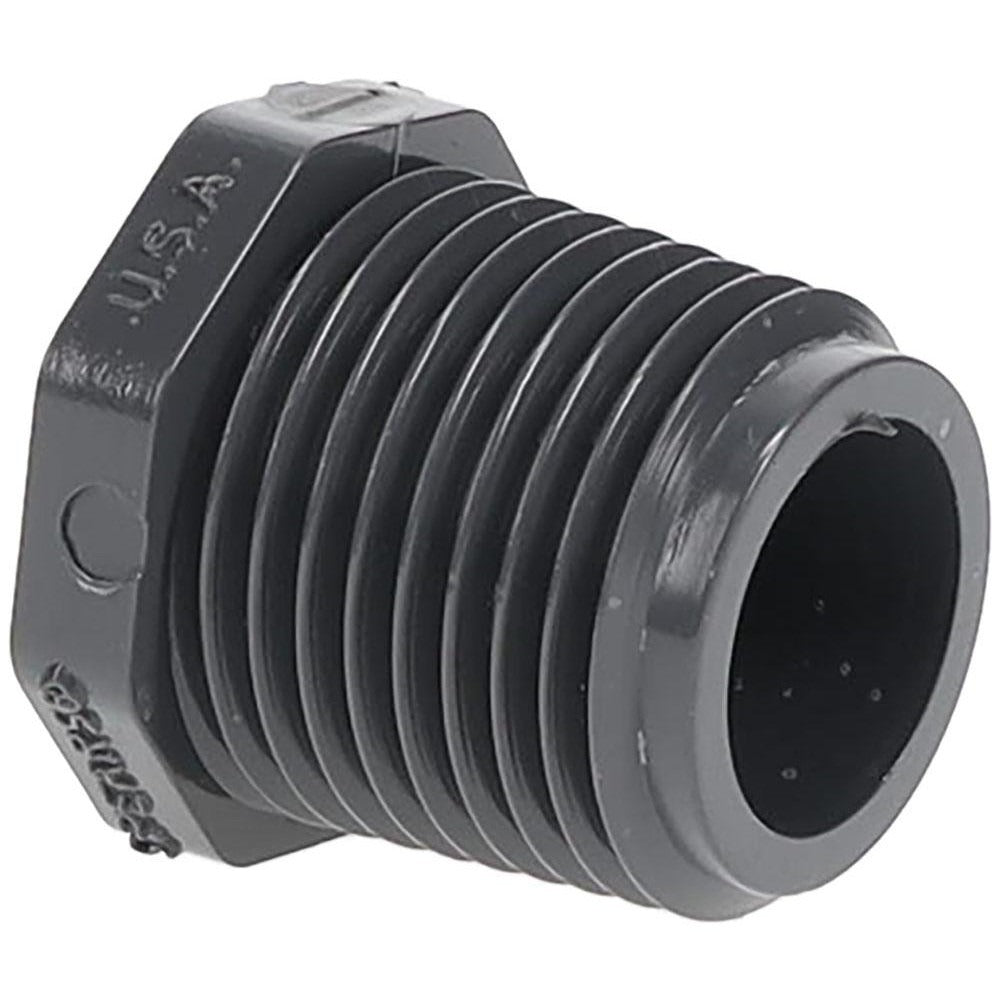

The VALUE COLLECTION 839-073 is a Schedule 80 PVC reducer bushing designed to transition from a 1/2-inch male iron pipe thread (MIPT) to a 3/8-inch female iron pipe thread (FIPT). Schedule 80 PVC wall thickness provides greater pressure resistance than Schedule 40, making this bushing suitable for demanding low-pressure fluid and chemical handling systems. The fitting is molded from PVC, which resists corrosion and is compatible with a wide range of non-petroleum fluids. Plumbers and pipefitters install this type of bushing when reducing pipe size within a threaded PVC system.

This reducer bushing is used in residential and light commercial plumbing, irrigation, chemical distribution, and pool or spa plumbing systems where a threaded size reduction is required. The MIPT outer thread seats into a female-threaded fitting or valve body, while the FIPT inner thread accepts a 3/8-inch male-threaded pipe or fitting. Typical applications include branch line reductions, chemical feed systems, and filter or pump manifold assemblies.

Key Features

• Schedule 80 PVC construction offers heavier wall thickness and higher pressure rating than Schedule 40
• Reduces from 1/2-inch to 3/8-inch pipe size in a single threaded fitting
• MIPT x FIPT end connections allow direct thread-to-thread installation without additional adapters
• PVC material resists corrosion, scale, and many common chemicals
• Compact bushing profile minimizes space required at the reduction point

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 threaded PVC piping systems using 1/2-inch and 3/8-inch pipe sizes.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters working on threaded PVC systems. Shut off and depressurize the line completely before disassembling any threaded connections. Apply an appropriate thread sealant or PTFE tape rated for PVC and the fluid being handled. Do not overtighten PVC threaded fittings, as PVC threads can crack under excessive torque.
