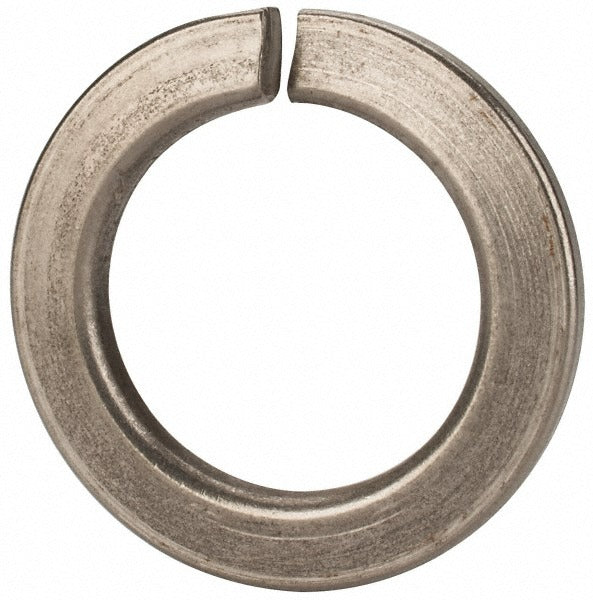

Value Collection 836360PR M36 Metric Split Lock Washer

Product Description

The VALUE COLLECTION 836360PR is a metric split lock washer designed for use with M36 fasteners. It is manufactured from 18-8 austenitic stainless steel, Grade A2, with a bright uncoated finish. The washer features a minimum inside diameter of 36.5mm, a maximum inside diameter of 37.7mm, a maximum outside diameter of 58.2mm, and a thickness of 6mm. It conforms to DIN 127 fastener standards. This washer is installed by maintenance technicians, millwrights, and mechanical contractors working on structural or mechanical assemblies requiring corrosion-resistant hardware.

This split lock washer is suited for industrial, commercial, and marine-adjacent applications where stainless steel hardware is specified for corrosion resistance. It is used in bolted assemblies subject to vibration or loosening, where the helical spring action of the split washer helps maintain clamp load. The uncoated finish makes it compatible with standard stainless fastener assemblies without galvanic concerns between coatings and base metal.

Key Features

• 18-8 austenitic stainless steel, Grade A2 for corrosion resistance
• Conforms to DIN 127 fastener standard for metric split lock washers
• Inside diameter range of 36.5mm to 37.7mm fits M36 screw size
• Maximum outside diameter of 58.2mm with 6mm thickness for robust clamp load
• Bright uncoated finish with no surface treatment to alter dimensional tolerances

Compatibility

Designed for use with M36 metric fasteners in assemblies requiring DIN 127-compliant split lock washers in 18-8 stainless steel.

Installation Notes

Installation is performed by qualified mechanical trades familiar with metric fastener assemblies. Power down or de-energize any associated equipment before disassembling bolted connections. Verify that mating fastener and nut material is compatible with Grade A2 stainless steel to avoid galvanic corrosion. Do not install on fasteners outside the M36 size range, as improper fit will compromise locking function.
