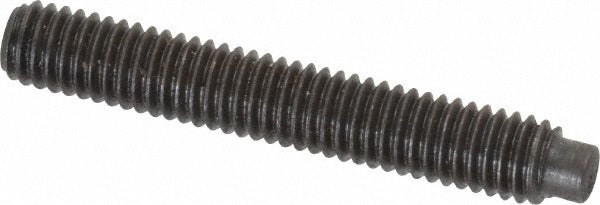

Value Collection 833088PS M6 Dog Point Set Screw 40mm

Product Description

The VALUE COLLECTION 833088PS is an M6 x 1.00 x 40 mm dog point set screw manufactured from alloy steel to Grade 14.9 (45H). It features a 3 mm hex drive socket and a black oxide finish that provides mild corrosion resistance and reduces galling during installation. The dog point tip extends beyond the thread to engage a mating hole or groove in a shaft, providing positive locating and anti-rotation retention. This fastener meets DIN 915 and ISO 4028 dimensional standards and is sized in metric units. It is installed by maintenance technicians, machinists, and mechanical assemblers in production and field service applications.

Dog point set screws are used where a headless fastener must seat into a recess or drilled hole on a shaft to prevent rotational or axial movement without protruding above the mating surface. The 40 mm overall length and M6 x 1.00 thread pitch suit medium-duty clamping and positioning tasks in mechanical assemblies, conveyor components, shaft collars, gears, and similar hardware. The metric sizing and compliance with DIN 915 and ISO 4028 make this screw suitable for equipment following European or internationally standardized designs.

Key Features

• Dog point tip engages mating shaft hole for positive locating and anti-rotation retention
• Alloy steel construction at Grade 14.9 (45H) for high-strength clamping force
• Black oxide finish reduces surface friction and provides mild corrosion resistance
• 3 mm hex key drive for installation with standard metric hex wrenches
• Meets DIN 915 and ISO 4028 dimensional standards
• Headless design allows flush or below-surface seating

Compatibility

Designed as an OEM-style metric set screw for mechanical assemblies requiring M6 x 1.00 threaded headless fasteners conforming to DIN 915 and ISO 4028 specifications.

Installation Notes

Installation is performed using a 3 mm hex key torqued by hand or with a calibrated hex driver. Power down and de-energize any equipment before servicing fasteners on rotating shafts or assemblies. Ensure the mating dog point hole or groove is properly sized and deburred before seating the screw. Apply thread-locking compound if vibration loosening is a concern in the application.
