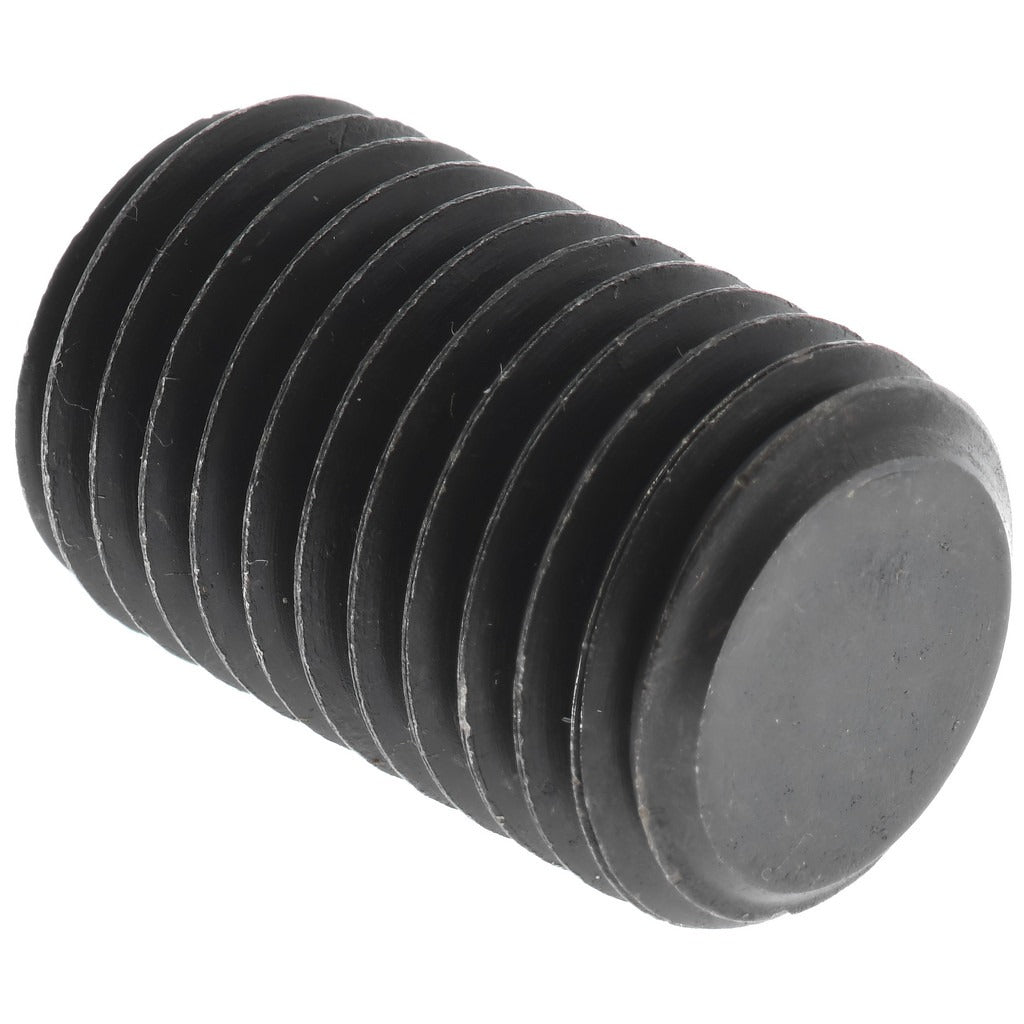

Value Collection 832314PS Set Screw M16x2 25mm Flat Point

Product Description

The VALUE COLLECTION 832314PS is an M16 x 2.00 x 25 mm flat point set screw manufactured from alloy steel at Grade 14.9 (45H). Set screws of this type are fully threaded, headless fasteners used to secure components against rotation or axial movement on shafts and in bores. This screw features an 8 mm internal hex drive and a black oxide finish that provides mild corrosion resistance. At 0.02 pounds, it is a compact fastener intended for high-stress mechanical assemblies where a hardened, metric-standard screw is required. Installation and torquing are performed with a standard metric hex key.

This set screw is suited for industrial and mechanical applications where a flat point is preferred to distribute clamping load without marring a shaft surface. Typical uses include securing pulleys, collars, gears, and similar rotating components onto shafts. The metric thread profile and Grade 14.9 hardness rating make it appropriate for demanding clamping applications in manufacturing, machine building, and maintenance environments. It conforms to DIN 913 and ISO 4026 standards, ensuring dimensional compatibility with other metric fasteners in those series.

Key Features

• M16 x 2.00 thread size, 25 mm overall length for precise dimensional fit
• Flat point design distributes load evenly and minimizes shaft surface damage
• Grade 14.9 (45H) alloy steel construction provides high tensile and hardness ratings
• 8 mm hex drive accepts standard metric hex keys
• Black oxide finish offers mild corrosion resistance in typical shop environments
• Conforms to DIN 913 and ISO 4026 dimensional standards

Compatibility

Designed as a standard metric replacement or stock set screw for mechanical assemblies requiring a DIN 913 or ISO 4026 compliant M16 x 2.00 x 25 mm flat point fastener.

Installation Notes

Set screws of this type are installed by mechanical technicians and machinists using an 8 mm hex key. Always ensure the mating threaded bore is clean and free of debris before installation. De-energize or lockout any machinery before accessing shaft-mounted components. Do not exceed the torque capacity appropriate for the thread size and grade as specified in the relevant fastener standard.
