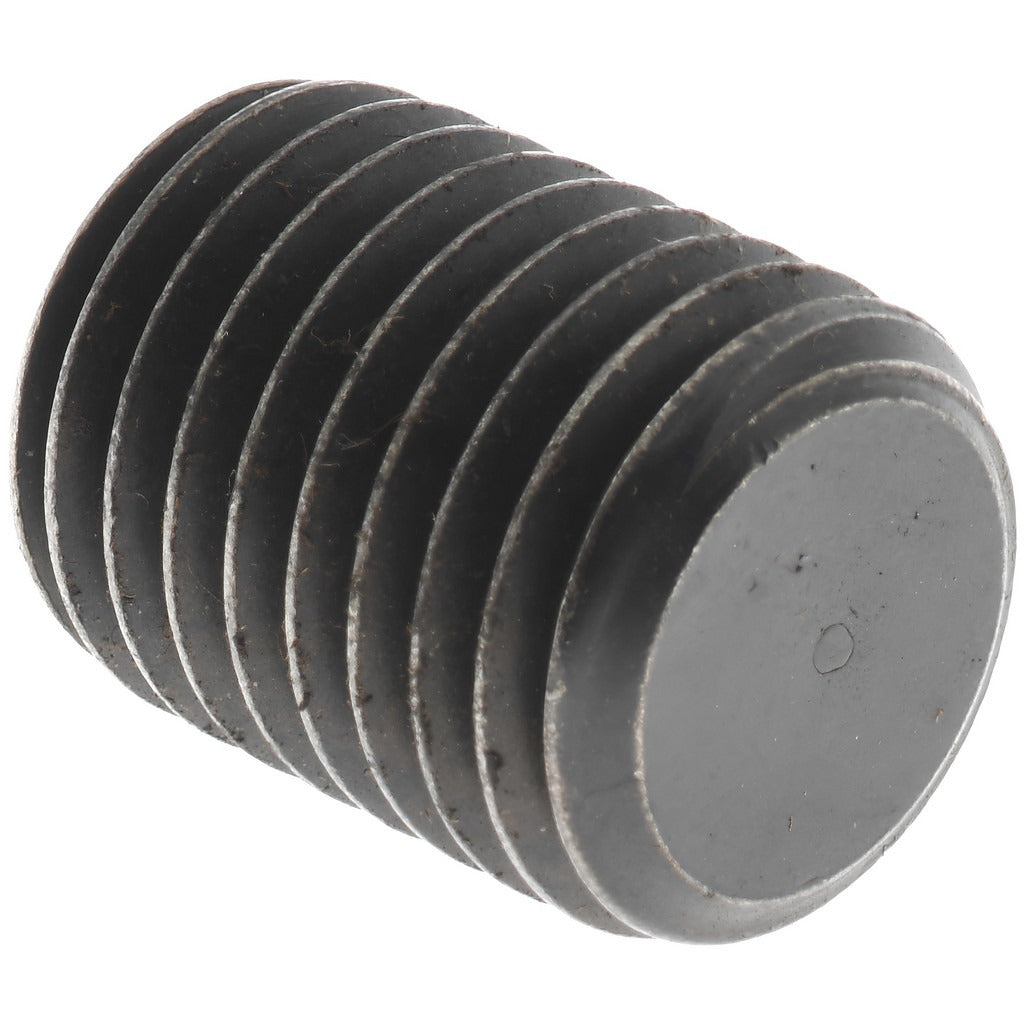

Value Collection 832312PS Set Screw M16x2 20mm Flat Point

Product Description

The VALUE COLLECTION 832312PS is an M16 x 2.00 x 20 mm flat point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws of this type are headless fasteners used to secure a component — such as a collar, gear, pulley, or hub — against a shaft by bearing force directly through the point. The flat point distributes load across the shaft surface without marring it. This screw features a black oxide finish for mild corrosion resistance and is driven with an 8 mm hex key. It conforms to DIN 913 and ISO 4026 dimensional and performance standards. Maintenance mechanics, machine builders, and industrial technicians install these fasteners in precision assemblies where flush or recessed fastening is required.

This set screw is suited for metric fastening applications in industrial machinery, power transmission assemblies, and mechanical equipment where a flat point is specified to avoid shaft damage. The M16 x 2.00 thread pitch and 20 mm overall length make it appropriate for medium-to-heavy-duty shaft retention tasks. It is sold individually and is compatible with any standard 8 mm hex key drive tool.

Key Features

• M16 x 2.00 metric thread for precise engagement in standard metric tapped holes
• 20 mm overall length provides substantial thread engagement depth
• Flat point design distributes clamping force evenly and reduces shaft deformation
• Grade 14.9 (45H) alloy steel construction delivers high tensile and torsional strength
• Black oxide finish provides mild corrosion and oxidation resistance
• Conforms to DIN 913 and ISO 4026 standards for dimensional consistency
• 8 mm internal hex drive for use with standard hex key or Allen wrench tooling

Compatibility

Designed as a DIN 913 and ISO 4026 compliant metric set screw suitable for any M16 x 2.00 tapped hole application requiring a flat point fastener.

Installation Notes

Installation is performed by threading the screw into a pre-tapped M16 x 2.00 hole using an 8 mm hex key. Verify the mating tapped hole is clean and free of debris before installation. Apply appropriate thread locking compound if vibration resistance is required by the assembly specification. Follow all applicable machinery safety lockout and tagout procedures before working on power transmission components.
