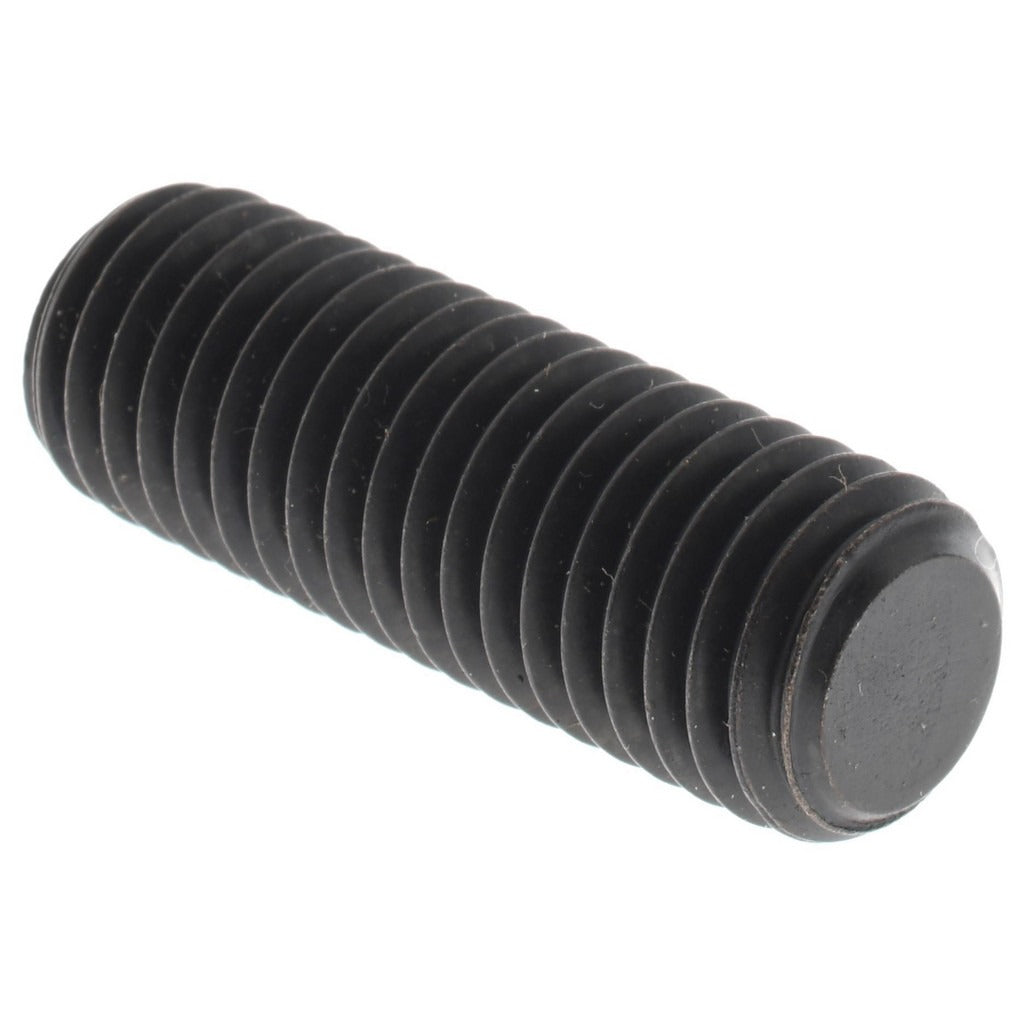

Value Collection 832192PS Set Screw M12x1.75x20mm Flat Point

Product Description

The VALUE COLLECTION 832192PS is an M12 x 1.75 x 20 mm flat point set screw manufactured from alloy steel to Grade 14.9 (45H). Set screws of this type are fully threaded, headless fasteners used to secure a component — such as a collar, gear, or pulley — against or within a mating part by direct point pressure rather than clamping force. This screw features a 6 mm internal hex drive and a black oxide finish, conforming to DIN 913 and ISO 4026 standards. It weighs approximately 0.02 pounds per piece. Machinists, millwrights, and maintenance technicians install these fasteners in mechanical assemblies where a flush or recessed installation is required.

Flat point set screws are commonly used in applications where the mating surface must not be heavily marred and axial or rotational load is moderate. Typical installations include shaft-to-hub connections, stop collars, and positioning fixtures in industrial machinery, conveyor systems, and general mechanical assemblies. The black oxide finish provides mild corrosion resistance suitable for indoor or protected environments. The metric thread form and DIN 913 / ISO 4026 compliance make this screw well suited for equipment manufactured to European or international dimensional standards.

Key Features

• Flat point geometry applies distributed pressure without deeply penetrating the mating shaft surface
• Alloy steel construction at Grade 14.9 (45H) delivers high tensile and torsional strength
• 6 mm hex drive accepts standard metric hex keys for installation and removal
• Black oxide finish provides mild corrosion resistance in protected environments
• Conforms to DIN 913 and ISO 4026 dimensional standards for metric set screws
• Fully threaded, headless design allows flush or below-surface installation

Compatibility

Designed as a standard metric set screw for use in any application requiring a DIN 913 or ISO 4026 compliant M12 x 1.75 flat point fastener in alloy steel.

Installation Notes

Set screws of this type are installed and removed by millwrights or maintenance technicians using a 6 mm hex key or matching driver bit. Always de-energize and lock out the machine before servicing any assembly containing this fastener. Thread engagement should be adequate to support the applied load; consult the assembly drawing or engineering specification for minimum engagement depth. Do not exceed the rated torsional capacity of the alloy steel grade when applying installation torque.
