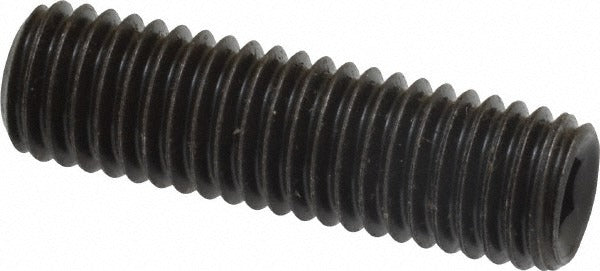

Value Collection 832154PS M10 Set Screw Flat Point Alloy Steel

Product Description

The VALUE COLLECTION 832154PS is an M10 x 1.50 x 35 mm flat point set screw manufactured from alloy steel to material grade 14.9 (45H). It features a 5 mm hex drive and a black oxide finish. Set screws of this type are used to secure a component — such as a collar, pulley, gear, or hub — against a shaft by applying direct clamping force through the fastener point. This part conforms to DIN 913 and ISO 4026 dimensional standards. Maintenance technicians, machinists, and mechanical assemblers use this fastener in precision and industrial applications where a headless, flush-mounting screw is required.

This set screw is suited for use in mechanical power transmission assemblies, rotating equipment, and general industrial fabrication where an M10 coarse-thread fastener is specified. The flat point distributes clamping load across the shaft or seating surface, making it appropriate for applications where shaft marring must be minimized. It is a metric fastener and should be installed in metric-threaded bores only.

Key Features

• M10 x 1.50 thread size, 35 mm overall length
• Flat point design minimizes surface damage to mating shaft
• 5 mm hex drive for standard hex key installation
• Alloy steel construction at material grade 14.9 (45H) for high tensile strength
• Black oxide finish provides mild corrosion resistance and reduces light reflection
• Conforms to DIN 913 and ISO 4026 fastener standards

Compatibility

Designed as a metric set screw for use in M10 x 1.50 threaded bores in mechanical assemblies, power transmission components, and industrial equipment requiring a DIN 913 or ISO 4026 compliant flat point fastener.

Installation Notes

Installation requires a 5 mm hex key or Allen driver. Ensure the receiving bore is clean and free of debris before threading the screw. Torque to the value specified by the equipment manufacturer for the applicable material grade and thread size. Confirm the flat point seats fully against the shaft or contact surface before final tightening.
