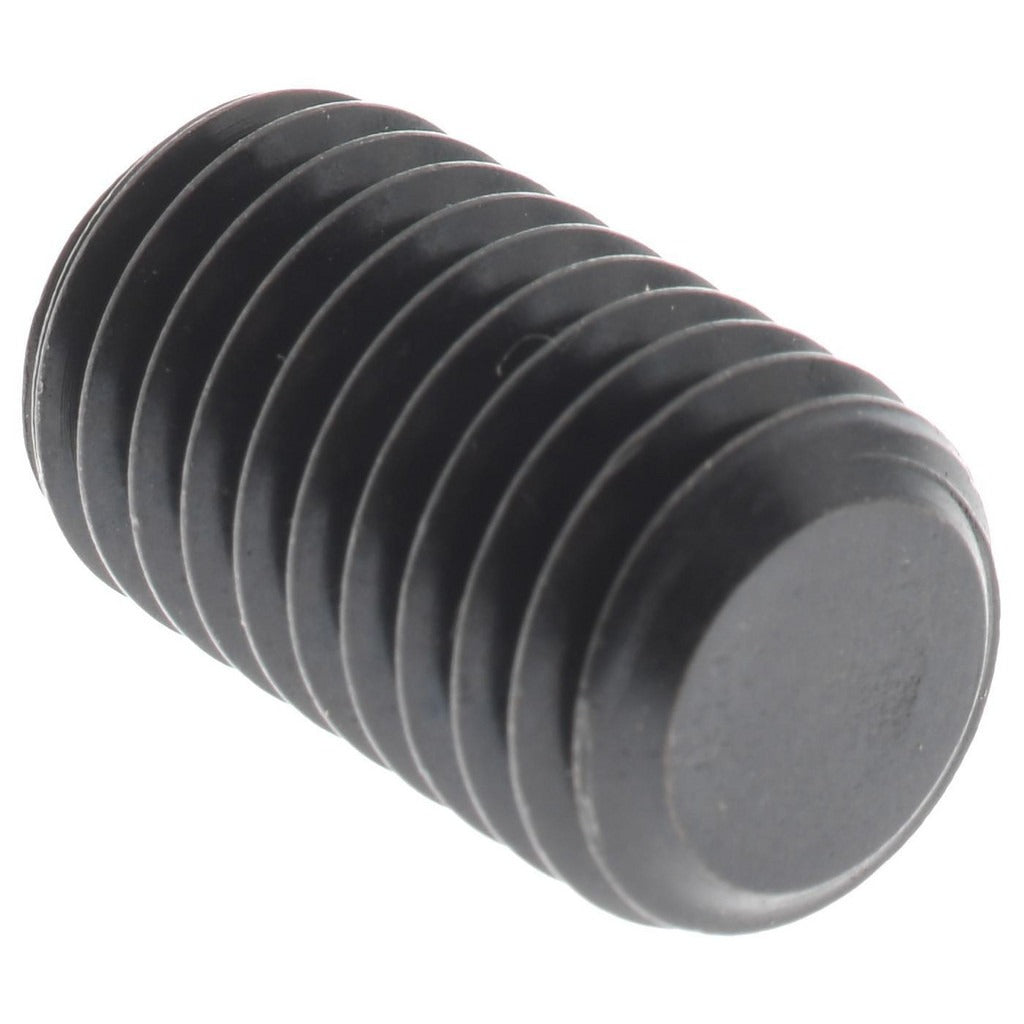

Value Collection 832152PS Set Screw M10x1.50x30mm Flat Point

Product Description

The VALUE COLLECTION 832152PS is an M10 x 1.50 x 30 mm flat point set screw manufactured from Grade 14.9 (45H) alloy steel with a black oxide finish. Set screws are headless fasteners that thread fully into a tapped hole to apply clamping force against a shaft, pin, or mating surface. The flat point distributes contact load evenly, making this geometry well suited for applications where shaft marring must be minimized. The black oxide coating provides mild corrosion resistance and reduces surface reflectivity. This fastener meets DIN 913 and ISO 4026 dimensional standards and is driven with a 5 mm hex key. Machinists, maintenance technicians, and mechanical assemblers are the primary installers.

This set screw is used in mechanical assemblies requiring secure shaft-to-hub retention, collar positioning, or component locking on rotating or stationary equipment. Typical applications include machine tool fixtures, conveyor components, power transmission assemblies, and general industrial equipment. The metric M10 x 1.50 thread pitch and 30 mm overall length make it appropriate for medium-duty clamping tasks in both light and heavy industrial environments. A minimum order quantity of 50 pieces applies to this SKU.

Key Features

• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Flat point geometry distributes clamping force and reduces shaft damage
• Black oxide finish for mild corrosion resistance and low reflectivity
• Conforms to DIN 913 and ISO 4026 dimensional standards
• 5 mm hex key drive for positive torque engagement
• Metric M10 x 1.50 thread for compatibility with standard metric tapped holes

Compatibility

Designed as a standard metric set screw for use in any M10 x 1.50 tapped hole application conforming to DIN 913 or ISO 4026 specifications.

Installation Notes

Installation is performed by threading the set screw into a pre-tapped M10 x 1.50 hole using a 5 mm hex key. Ensure the mating hole is clean and free of debris before installation. Apply threadlocker or anti-galling compound as required by the assembly specification. Always torque to the value specified by the equipment manufacturer or applicable engineering standard, and inspect threads for damage before reuse.
