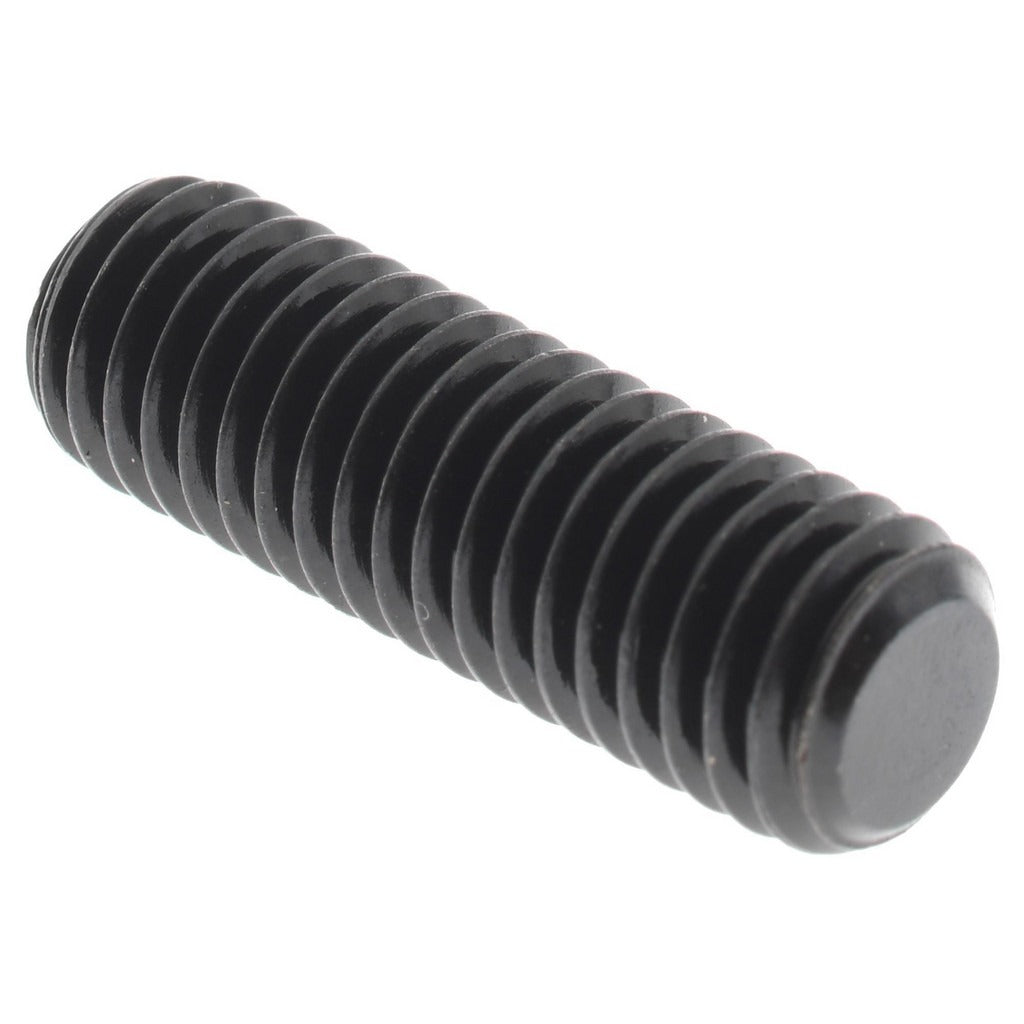

Value Collection 832110PR M8x1.25x16mm Flat Point Set Screw

Product Description

The VALUE COLLECTION 832110PR is an M8 x 1.25 x 16 mm flat point set screw manufactured from alloy steel to Grade 14.9 (45H) and finished with black oxide coating. Flat point set screws transmit clamping force across a broad surface area, making them well suited for applications where minimal shaft marring is required. The hex drive socket accepts a 4 mm hex key for installation and removal. This fastener meets DIN 913 and ISO 4026 standards and is sized using metric measurement. Machinists, maintenance technicians, and mechanical assemblers typically install these in precision equipment, tooling, and mechanical assemblies requiring a secure, low-profile fastener.

This set screw is appropriate for use in general industrial and mechanical applications where an M8 coarse-pitch flat point fastener is specified. Common install scenarios include shaft-to-hub locking, positioning collars, and fixture assemblies in manufacturing and MRO environments. The black oxide finish provides mild corrosion resistance and reduces light reflection in precision applications. These fasteners are sold in multiples of 100 units per order, with individual package quantity of one piece.

Key Features

• M8 x 1.25 thread size with 16 mm overall length in metric measurement
• Flat point geometry minimizes marring on mating shaft surfaces
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Black oxide finish for mild corrosion resistance and low-reflectance surface
• Hex socket drive accepts a 4 mm hex key
• Conforms to DIN 913 and ISO 4026 fastener standards

Compatibility

Designed as a metric flat point set screw for general industrial, manufacturing, and MRO applications requiring an M8 x 1.25 coarse-pitch, DIN 913 or ISO 4026 compliant fastener.

Installation Notes

Installation is performed with a 4 mm hex key; ensure the key is fully seated before applying torque to avoid rounding the drive socket. De-energize or lock out any machinery before adjusting or replacing set screws in rotating assemblies. Do not exceed the rated engagement depth for the mating tapped hole, and verify thread fit before final tightening. Follow applicable machinery safety standards and facility lockout/tagout procedures during service.
