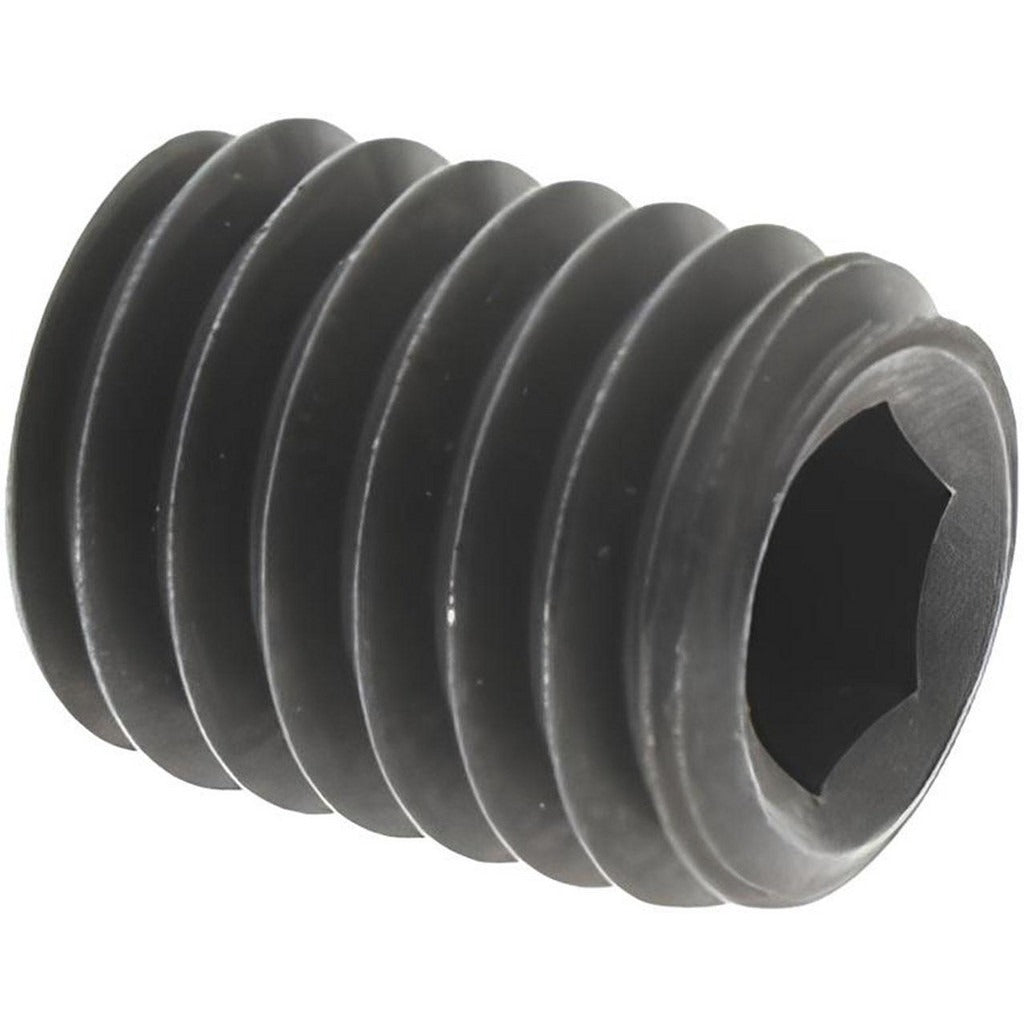

Value Collection 832106PR Set Screw M8 X 1.25

Product Description

The VALUE COLLECTION 832106PR is an M8 x 1.25 x 10 mm flat point set screw manufactured from alloy steel at Grade 14.9 (45H). Set screws are headless fasteners that thread fully into a tapped hole to secure a component against a shaft or mating surface without protruding above the workpiece. This screw features a 4 mm hex socket drive and a black oxide finish that provides moderate corrosion resistance and reduces galling during installation. At Grade 14.9 (45H), it delivers high clamp load in demanding mechanical assemblies. Machinists, millwrights, and maintenance technicians install these fasteners in shaft collars, pulleys, gears, and similar power-transmission components.

This set screw is suited for metric mechanical assemblies where a flush or recessed fastener is required. The flat point style distributes load across the mating surface, making it appropriate for hardened shafts or finished surfaces where a cup or cone point would cause unwanted marking or deformation. Typical applications include machine tool fixtures, conveyor components, and general industrial equipment requiring a compact, high-strength fastener. It conforms to DIN 913 and ISO 4026 dimensional standards, ensuring compatibility with standard metric tooling and gauging. Sold individually; minimum order quantity is 100 pieces.

Key Features

• M8 x 1.25 thread with 10 mm overall length in fully metric dimensions
• Flat point style prevents marring or indentation on hardened or finished shaft surfaces
• Grade 14.9 (45H) alloy steel provides high tensile and torsional strength
• 4 mm hex socket drive for standard hex key or bit installation
• Black oxide finish reduces surface friction and offers mild corrosion protection
• Conforms to DIN 913 and ISO 4026 standards for dimensional consistency

Compatibility

Designed as a standard metric set screw conforming to DIN 913 and ISO 4026, compatible with any M8 x 1.25 tapped hole requiring a flat point headless fastener.

Installation Notes

Installation is performed by machinists or maintenance technicians using a 4 mm hex key or hex bit driver. Ensure the mating tapped hole is clean and free of debris before threading. Apply appropriate thread-locking compound if vibration is a concern in the application. Always de-energize and lock out equipment before servicing any assembly that contains set screws.
