Value Collection 832082PR Set Screw M6x1 25mm Flat Point

Product Description

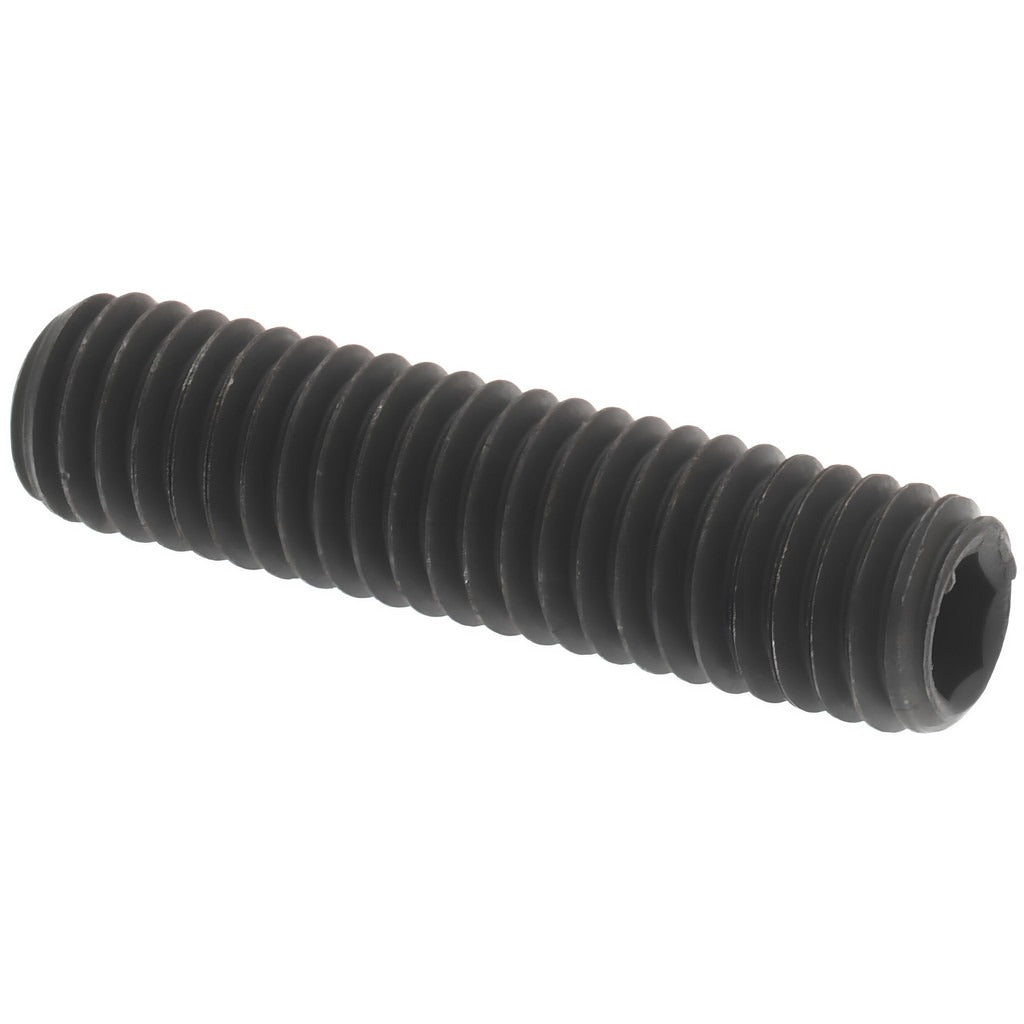

The VALUE COLLECTION 832082PR is an M6 x 1.00 x 25 mm flat point set screw manufactured from alloy steel at Grade 14.9 (45H). It features a 3 mm hex drive socket and a black oxide finish that provides mild corrosion resistance. Set screws of this type are fully threaded and headless, seating flush with or below the surface of the mating part when driven. They are widely used by machinists, millwrights, and mechanical assembly technicians to lock collars, hubs, pulleys, and similar components onto shafts. The black oxide finish reduces light reflection and offers basic surface protection in dry or lightly oiled environments.

This set screw is suited for metric mechanical assemblies requiring a secure, low-profile fastener. Typical applications include shaft collar retention, gear hub locking, and fixture assembly in industrial machinery, conveyor systems, and precision equipment. The flat point design distributes clamping load across a small flat contact area, minimizing shaft damage compared to cup or cone point styles. It is appropriate for both original equipment assembly and field maintenance work where a Grade 14.9 high-strength fastener is specified.

Key Features

• M6 x 1.00 thread with 25 mm overall length for metric shaft-locking applications
• Flat point design minimizes shaft and bore surface damage during tightening
• Grade 14.9 (45H) alloy steel construction provides high tensile and torsional strength
• 3 mm hex key drive for precise torque application in tight clearances
• Black oxide finish for mild corrosion resistance and reduced surface reflectivity
• Conforms to DIN 913 and ISO 4026 fastener standards

Compatibility

Designed as a metric replacement or maintenance fastener for assemblies specifying DIN 913 or ISO 4026 flat point set screws in M6 x 1.00 thread size with 25 mm length.

Installation Notes

Installation is performed with a 3 mm hex key or hex bit driver. Ensure the mating threaded hole is clean and free of debris before installation. De-energize and lock out any machinery before servicing components secured by set screws. Do not exceed the torque specification listed in the equipment manufacturer's documentation for Grade 14.9 M6 fasteners.
