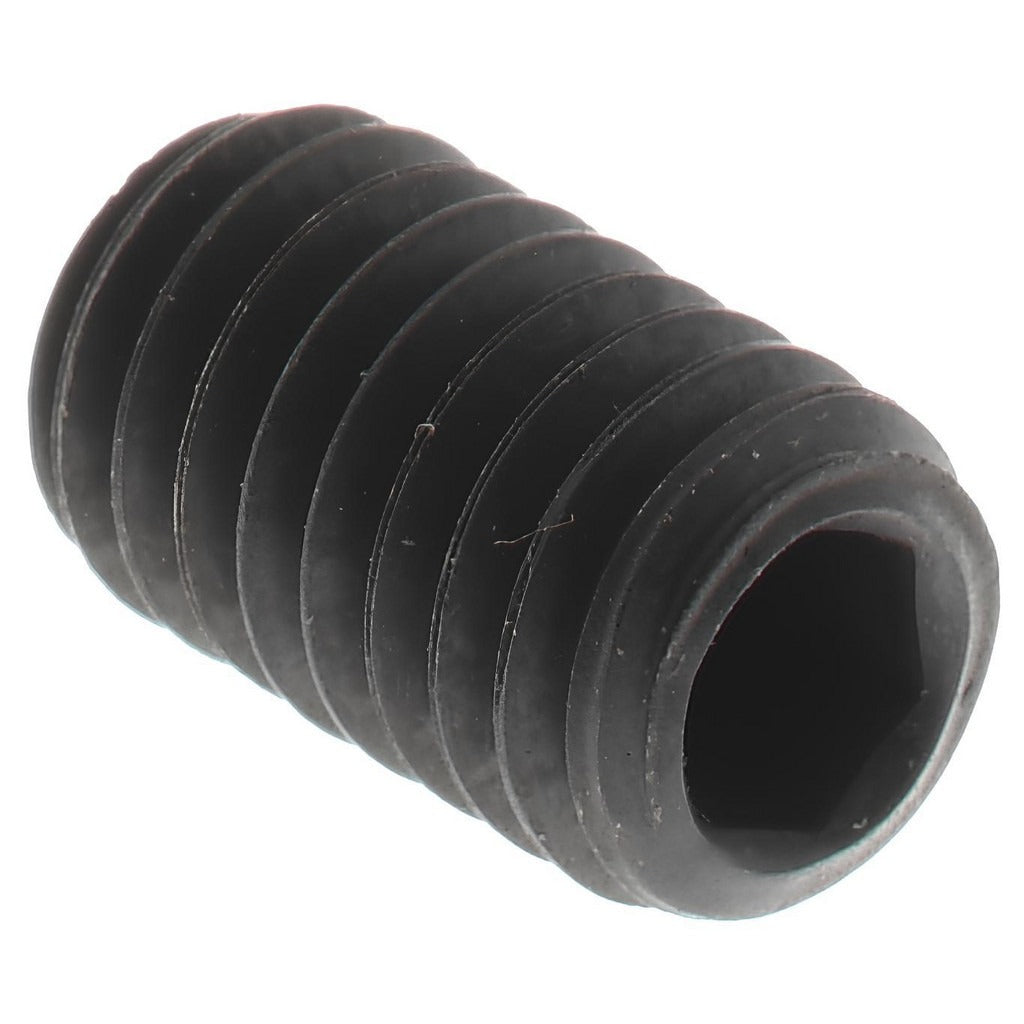

Value Collection 832074PR M6 X 1.00 X 10 Mm Set Screw

Product Description

The VALUE COLLECTION 832074PR is a metric set screw designed for mechanical assemblies where a flush, non-protruding fastening point is required. It features a flat point tip, which distributes clamping load across the mating surface without marring or indenting the shaft or workpiece. The screw is manufactured from alloy steel to Grade 14.9 (45H), providing high tensile strength suitable for demanding industrial and mechanical applications. A black oxide finish offers moderate corrosion resistance and reduces surface reflectivity. Drive engagement is via a 3 mm hex key socket, and the fastener conforms to DIN 913 and ISO 4026 standards.

This set screw is used in industrial machinery, motion control assemblies, shaft collars, hubs, couplings, and similar mechanical components where a headless fastener is needed to lock a component to a shaft or within a bore. The flat point style is particularly suited for applications where the mating surface must remain unmarked or where frequent adjustment is anticipated. Sold as a single piece with a minimum order quantity of 100 units, this fastener is a standard item for MRO procurement, machine shops, and assembly operations.

Key Features

• Flat point tip distributes load without damaging mating shaft surfaces
• Alloy steel Grade 14.9 (45H) construction for high tensile strength
• Black oxide finish for moderate corrosion resistance
• 3 mm hex key drive for precise torque application in tight spaces
• Conforms to DIN 913 and ISO 4026 international fastener standards
• Metric thread specification for use in metric-dimensioned assemblies

Compatibility

Designed as an OEM-style replacement or standard-supply set screw for any metric mechanical assembly requiring an M6 x 1.00 hex socket flat point set screw conforming to DIN 913 or ISO 4026.

Installation Notes

Installation is performed with a 3 mm hex key. Power down or de-energize any equipment before servicing components that use this fastener. Do not exceed the torque rating appropriate for Grade 14.9 alloy steel fasteners at this thread size as specified by the equipment manufacturer. Ensure the mating bore or shaft is clean and free of debris before seating the flat point to maintain proper clamping force.
