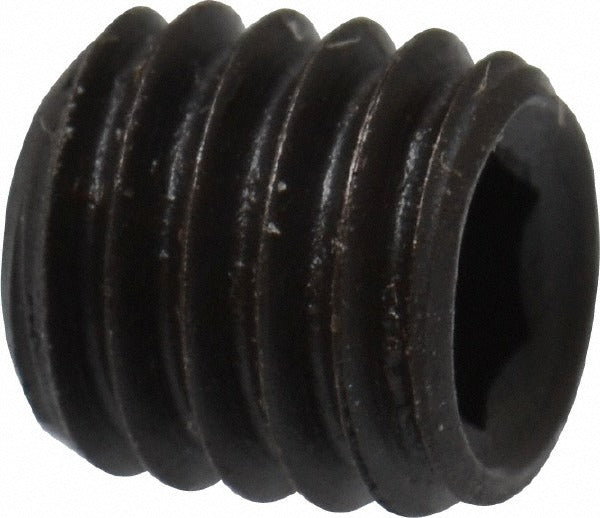

Value Collection 832044PR M5 X 0.80 X 5 Mm Flat Point Set Screw

Product Description

The VALUE COLLECTION 832044PR is an M5 x 0.80 x 5 mm flat point set screw designed for precision clamping and locking applications in mechanical assemblies. Manufactured from Grade 14.9 (45H) alloy steel and finished with black oxide, it provides solid holding force and corrosion resistance in demanding environments. The flat point design distributes load evenly against the mating surface, reducing indentation on softer materials. Driven by a 2.5 mm hex key, this screw conforms to DIN 913 and ISO 4026 standards. It is well-suited for machinists, maintenance technicians, and industrial assembly professionals working with metric fastener specifications.

This set screw is used in shaft-to-hub connections, collar locking, and positioning of mechanical components where a flush or below-surface installation is required. Its metric M5 x 0.80 thread pitch and 5 mm overall length make it appropriate for compact assemblies where space is limited. The black oxide finish offers mild corrosion protection and reduces light reflection in precision tooling environments. This item is sold individually but requires a minimum order quantity of 100 pieces per order.

Key Features

• M5 x 0.80 thread with 5 mm overall length for compact metric applications
• Flat point design reduces surface damage on softer mating materials
• Grade 14.9 (45H) alloy steel provides high tensile and torsional strength
• Black oxide finish for mild corrosion resistance and reduced surface reflection
• Driven by 2.5 mm hex key for precise torque application in tight spaces
• Conforms to DIN 913 and ISO 4026 fastener standards

Compatibility

Designed as a metric set screw replacement conforming to DIN 913 and ISO 4026 standards, suitable for use in any mechanical assembly requiring an M5 x 0.80 flat point grub screw.

Installation Notes

Installation is performed with a 2.5 mm hex key. Ensure the receiving threaded bore is clean and free of debris before installation. Power down and de-energize any machinery before servicing fastened assemblies. Do not exceed the rated load capacity of the screw or substitute with non-equivalent grade fasteners.
