Value Collection 832019PR M4 Flat Point Set Screw Alloy Steel

Product Description

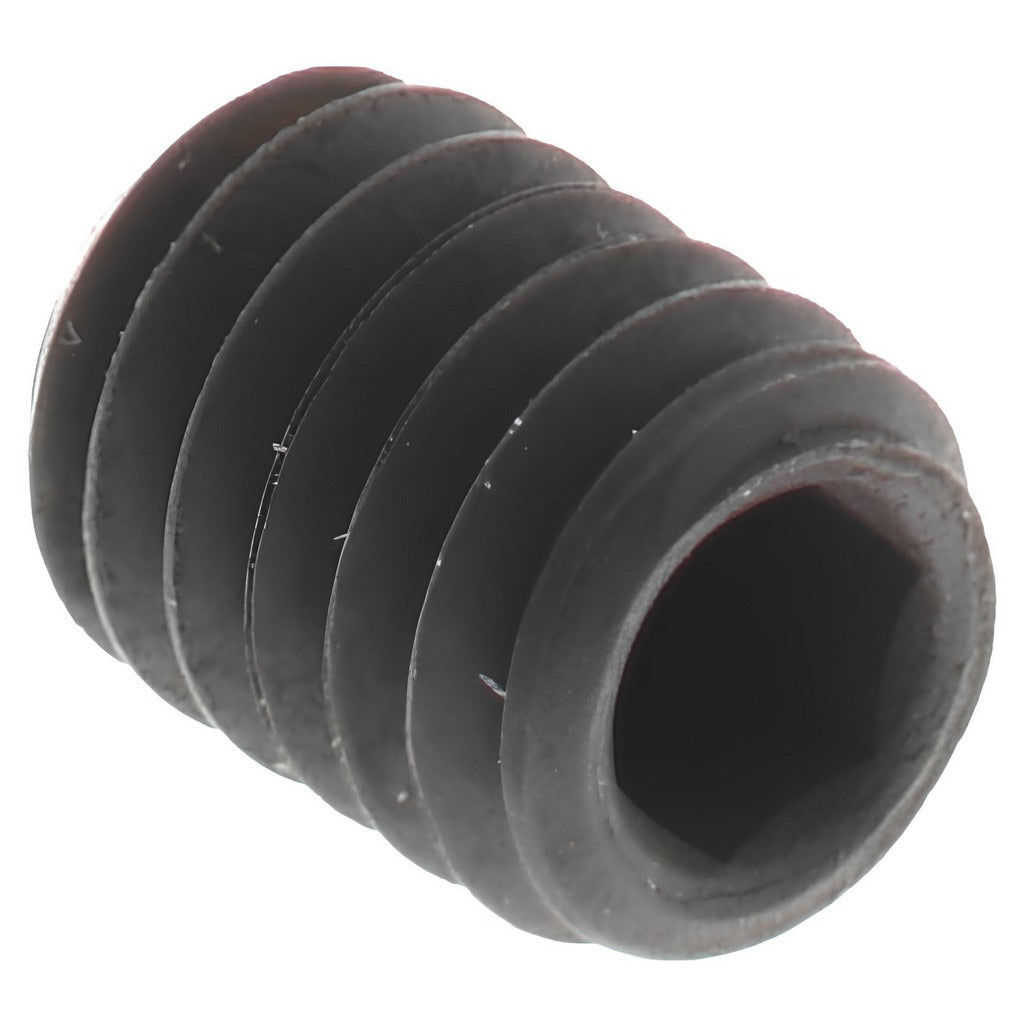

The VALUE COLLECTION 832019PR is an M4 x 0.70 x 5 mm flat point set screw manufactured from alloy steel to Grade 14.9 (45H). It features an internal hex drive sized at 2 mm and a black oxide finish that provides mild corrosion resistance and reduces light reflection. The screw is dimensioned to DIN 913 and ISO 4026 standards, ensuring consistent geometry and fitment across metric applications. This fastener is used by machinists, millwrights, and maintenance technicians wherever a headless, flush-seating clamping fastener is required to secure a component against a shaft or bore without protruding above the surface.

This set screw is suited for light-duty shaft locking, collar positioning, and assembly work on mechanical components where metric threading is specified. The flat point distributes axial load across the mating surface without marring softer shaft materials. Typical applications include motor shaft collars, gear hubs, pulleys, and similar mechanical assemblies in industrial, HVAC, and general maintenance settings. It is ordered in multiples of 100 units per minimum order quantity.

Key Features

• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength in a compact headless format
• Flat point design distributes clamping load and reduces shaft marring compared to cup or cone point styles
• 2 mm hex key drive allows installation in confined spaces with standard metric allen keys
• Black oxide finish provides mild corrosion resistance and a low-reflectance appearance
• Conforms to DIN 913 and ISO 4026 dimensional standards for consistent interchangeability
• Metric M4 x 0.70 thread at 5 mm overall length suits tight-clearance assemblies

Compatibility

Designed as a standard metric replacement or service fastener for mechanical assemblies requiring an M4 x 0.70 flat point set screw conforming to DIN 913 or ISO 4026 specifications.

Installation Notes

Installation is performed by machinists or maintenance technicians using a 2 mm hex key. De-energize and lock out any associated equipment before installing or removing set screws in rotating assemblies. Verify thread engagement and torque to the assembly specification for Grade 14.9 fasteners; do not substitute a lower-grade screw for a higher-grade application. Minimum order quantity for this part is 100 units.
