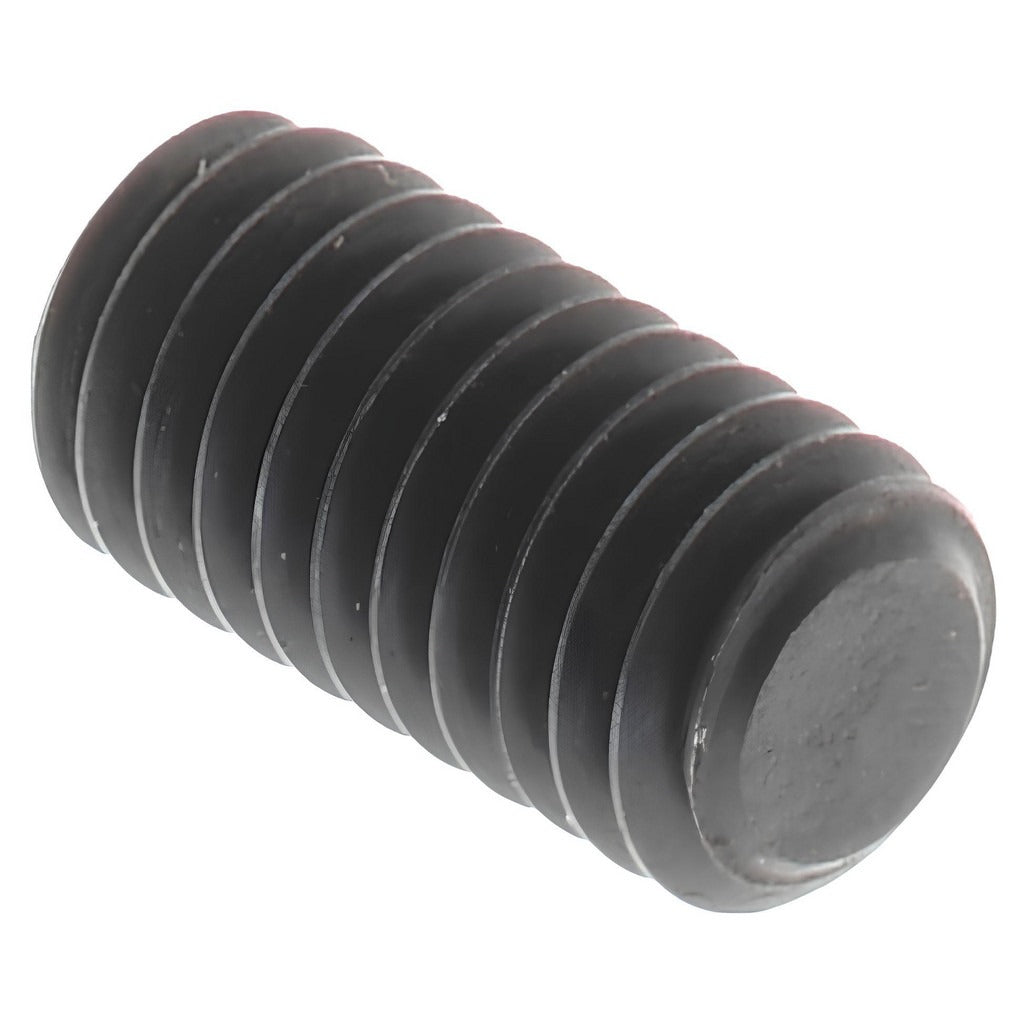

Value Collection 832004PR M3 X 0.50 X 6mm Flat Point Set Screw

Product Description

The VALUE COLLECTION 832004PR is an M3 x 0.50 x 6 mm flat point set screw manufactured from Grade 14.9 (45H) alloy steel with a black oxide finish. Set screws of this type are headless fasteners that thread fully into a tapped hole to apply clamping or holding force against a shaft, collar, or mating surface without protruding above the workpiece. The flat point distributes load evenly across the contact surface, making it well suited for securing components where minimal surface marking is required. The 1.50 mm hex drive accepts a standard hex key. This screw conforms to DIN 913 and ISO 4026 dimensional standards and is sized in metric units throughout.

This set screw is used in light mechanical assemblies, shaft collars, set-screw couplings, and precision positioning hardware where an M3 thread pitch of 0.50 and an overall length of 6 mm are specified. It is appropriate for applications in manufacturing, maintenance, and equipment assembly environments. The black oxide finish provides mild corrosion resistance and reduces light reflection in finished assemblies. Minimum order quantity is 100 pieces; the unit is sold individually by package quantity. Installers and assemblers working to metric fastener specifications will find this part a direct-fit replacement for any DIN 913 or ISO 4026 M3 x 0.50 x 6 mm flat point set screw.

Key Features

• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Flat point design minimizes surface damage on mating shaft or component
• Black oxide finish for mild corrosion resistance and low-reflectance appearance
• 1.50 mm hex drive compatible with standard metric hex keys
• Conforms to DIN 913 and ISO 4026 dimensional standards
• Fully metric sizing: M3 x 0.50 thread, 6 mm overall length

Compatibility

Designed as a direct-fit replacement for any DIN 913 or ISO 4026 compliant M3 x 0.50 x 6 mm flat point set screw in metric mechanical assemblies.

Installation Notes

Installation is performed with a 1.50 mm metric hex key; ensure the key is fully seated before applying torque to avoid rounding the drive. The mating tapped hole must be clean and free of debris before threading. De-energize or lock out any equipment before servicing fasteners on rotating or moving components per applicable safety procedures. Do not exceed the rated drive engagement depth of the host material.
