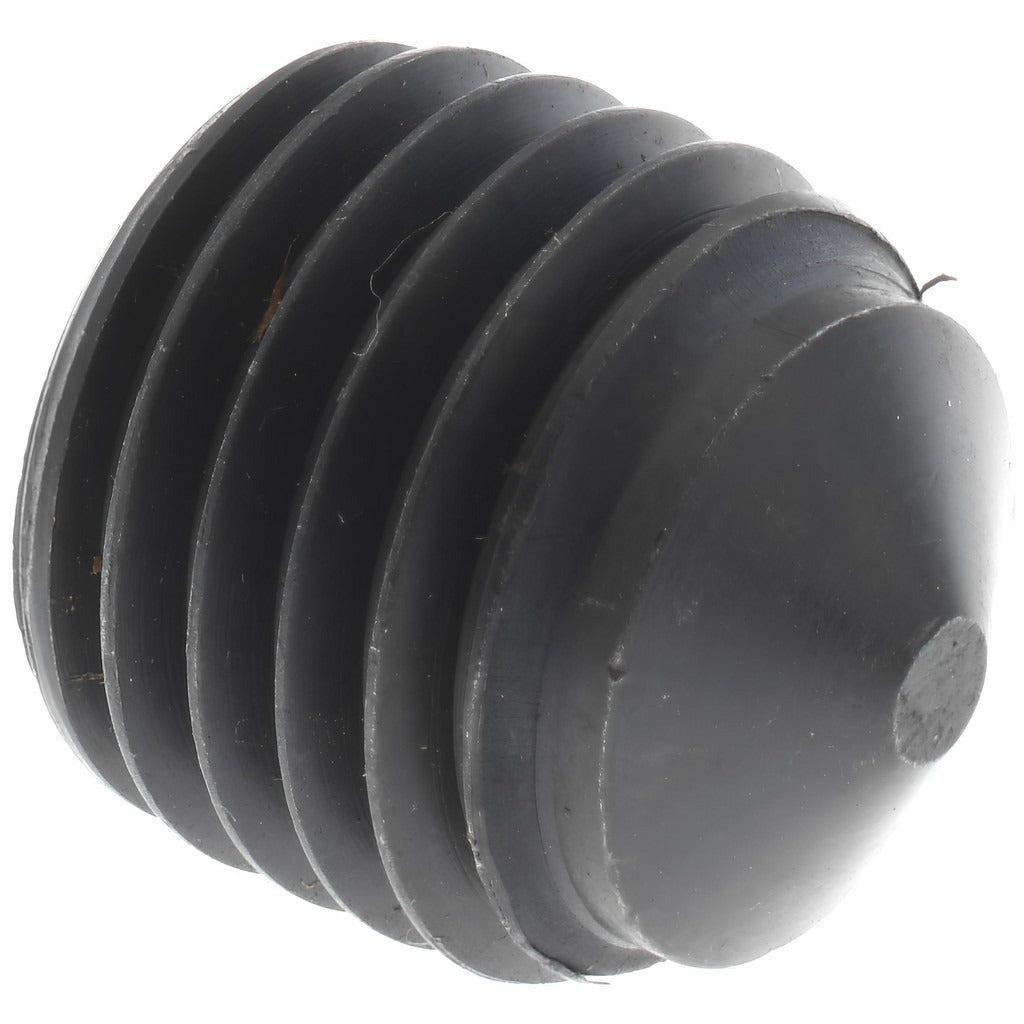

Value Collection 831220PS M16 Cone Point Set Screw

Product Description

The VALUE COLLECTION 831220PS is an M16 x 2.00 x 16 mm cone point set screw designed for mechanical assemblies requiring a positive locking engagement between a shaft and a hub or collar. The cone point geometry bites into the mating surface to resist rotation and axial movement. Manufactured from alloy steel to Grade 14.9 (45H), this fastener delivers high tensile and torsional strength suited to demanding industrial and mechanical applications. A black oxide finish provides mild corrosion resistance and reduces light reflection in finished assemblies. Drive is internal hex, accepting an 8 mm hex key for installation and removal.

This set screw is appropriate for use in power transmission components such as shaft collars, sprockets, pulleys, gears, and couplings where a cone point is specified to create an indentation lock on a smooth or hardened shaft. It follows DIN 914 and ISO 4027 fastener standards, making it a suitable drop-in for metric-dimensioned mechanical assemblies in manufacturing, maintenance, and industrial equipment repair. Machinists, millwrights, and maintenance technicians are the primary installers in both light and heavy industrial environments.

Key Features

• Cone point geometry creates a positive shaft-indent lock under load
• Grade 14.9 (45H) alloy steel construction for high tensile and torsional strength
• Black oxide finish for mild corrosion resistance
• Internal hex drive accepts an 8 mm hex key
• Conforms to DIN 914 and ISO 4027 standards for metric fasteners
• Overall length measured at 16 mm with M16 x 2.00 thread pitch

Compatibility

Designed as an OEM-style metric set screw replacement conforming to DIN 914 and ISO 4027 standards, suitable for M16 x 2.00 threaded bores in shaft collars, hubs, and similar power transmission components.

Installation Notes

Installation requires an 8 mm hex key or hex bit driver. Ensure the threaded bore in the hub or collar is clean and free of debris before threading the screw in. De-energize and lock out any rotating machinery before servicing shaft-mounted components. Do not exceed the torque capacity of the alloy steel fastener by using an extension or impact tool not rated for precision fastener work.
