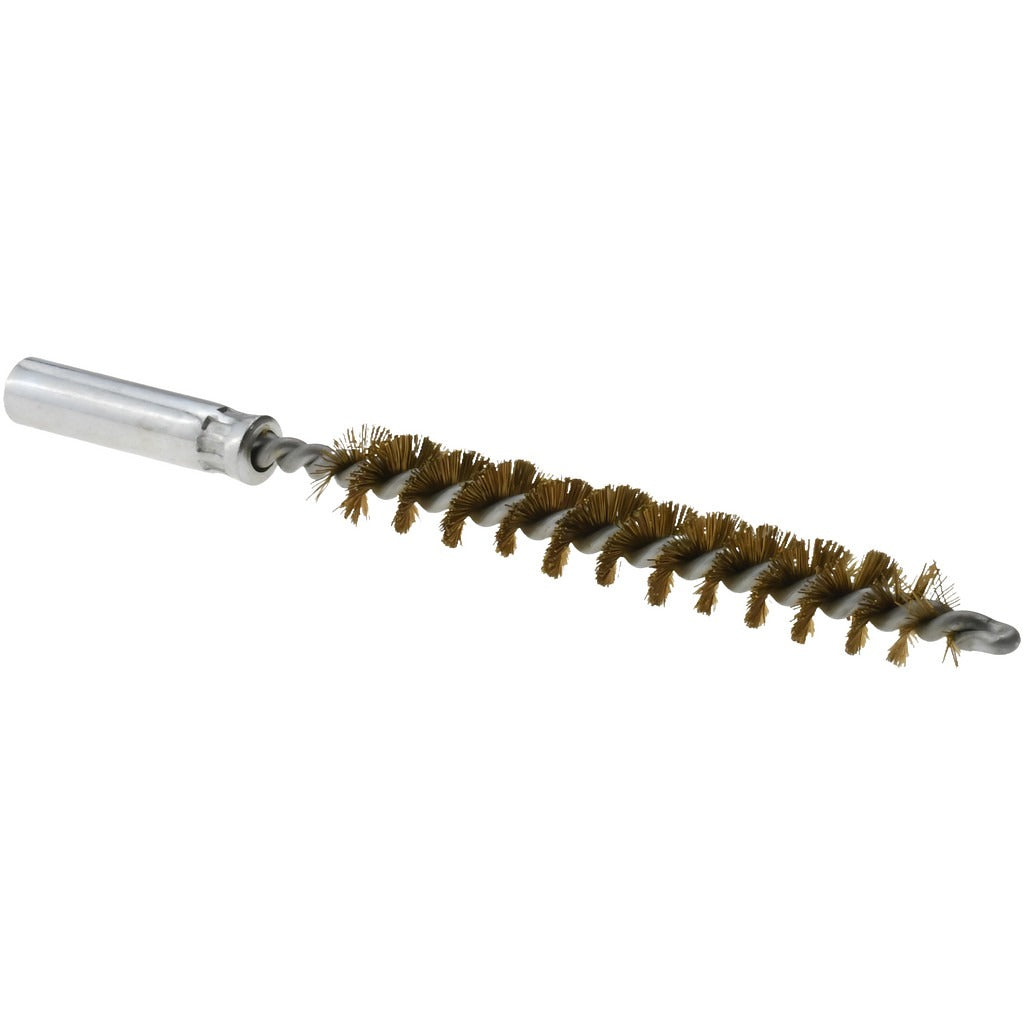

Value Collection 83100004 Helical Power Tube Brush

Product Description

The VALUE COLLECTION 83100004 is a helical power tube brush designed for cleaning the interior surfaces of tubes, pipes, and bores. The brush uses brass fill material wound in a helical pattern, which provides consistent contact along the full length of the bore during rotation. The 3/16-inch shank diameter features a female threaded connection with a 3/16-24 UNC thread pattern, allowing it to mount securely to compatible rotary drive tools or extension cables. This type of brush is commonly used by HVAC technicians, plumbers, and maintenance professionals for removing scale, deposits, and debris from heat exchanger tubes, condenser tubes, and similar internal surfaces.

This helical tube brush is suited for light-duty to medium-duty tube cleaning applications in both residential and light commercial settings. It is well matched for use on small-diameter tubing found in heat exchangers, condensers, evaporator coils, and copper or ferrous pipe systems. The brass fill is appropriate for use on softer tube materials where steel bristles would cause surface damage. It can be used with standard low-speed rotary drivers or tube cleaning machines that accept threaded shank attachments.

Key Features

• Helical brush pattern provides full-contact scrubbing action along the bore wall
• Brass fill material is non-sparking and safe for use on copper, aluminum, and soft alloy tube interiors
• 3/16-inch shank diameter with female threaded 3/16-24 connection for secure tool mounting
• Threaded connector type allows use with extension rods and compatible rotary drive equipment
• Lightweight at 0.5 pounds, reducing operator fatigue during repeated cleaning passes

Compatibility

Designed as an OEM-style replacement or standard-use helical tube brush for rotary drive systems accepting a 3/16-24 female threaded shank connection.

Installation Notes

Installation is performed by trade professionals or maintenance technicians using compatible rotary drive tools. Before beginning tube cleaning, isolate and de-energize the associated system and relieve any internal pressure in accordance with applicable safety procedures. Thread the shank securely into the drive tool or extension rod before applying rotational force. Do not exceed the recommended RPM range of the drive tool, as over-speed operation can damage the brush fill or the tube interior.
