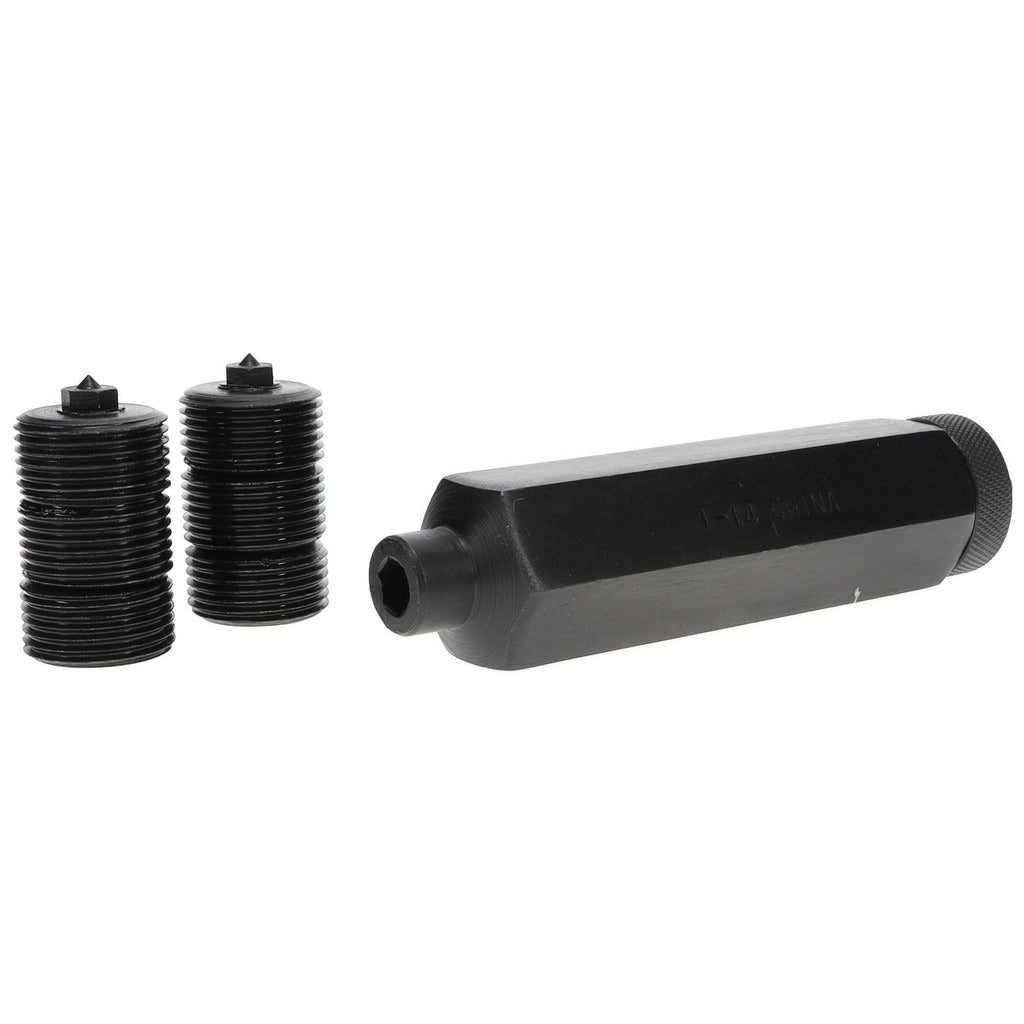

Value Collection 830-3132 Transfer Screw Set 7 Piece

Product Description

The VALUE COLLECTION 830-3132 is a 7-piece steel transfer screw set used to locate and transfer hole center points from one workpiece to another with precision. The set includes 6 transfer screws and 1 holder, making it a self-contained kit for layout and fitting tasks in machine shops, fabrication environments, and general metalworking. Transfer screws thread into existing tapped holes and leave a center mark on a mating surface when pressed together, eliminating the need for manual measurement transfer. The 1-14 thread designation applies to all 6 screws in the set. Construction is steel throughout for durability under shop conditions.

This transfer screw set is suited for machinists, toolmakers, and metalworking professionals working with threaded hole patterns that require accurate mating-part layout. Typical applications include aligning bolt hole patterns, fitting custom brackets, and transferring tapped hole locations from fixtures to workpieces. The included holder simplifies handling and keeps screws organized during use. The compact 7-piece format covers most single-pattern layout tasks without requiring additional components.

Key Features

• 7-piece set includes 6 transfer screws and 1 holder for complete single-pattern layout
• 1-14 thread specification on all 6 screws
• Steel construction for resistance to deformation under press contact
• Holder included for secure screw placement and retrieval
• Compact set weight of 0.45 pounds for easy transport and bench storage

Compatibility

Designed for use in tapped holes with a 1-14 thread form. Suitable for standard metalworking layout applications where 1-14 threaded holes require mating-surface center transfer.

Installation Notes

Transfer screws are installed by threading them into existing tapped holes in the reference part using the provided holder. The mating workpiece is then pressed or tapped firmly against the protruding screw points to mark center locations. No power tools are required. Ensure workpieces are properly fixtured and stable before applying pressure to avoid inaccurate transfer marks.
