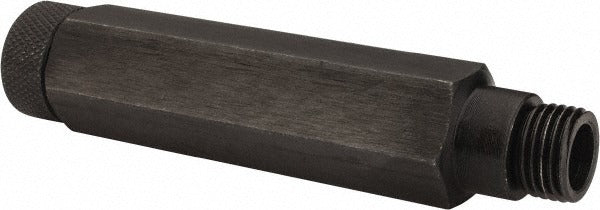

Value Collection 830-3128 Transfer Screw Set 9/16-18 7pc

Product Description

The VALUE COLLECTION 830-3128 is a 7-piece transfer screw set designed for locating and transferring hole positions from one workpiece to another with precision. The set includes 6 transfer screws and 1 holder, all constructed from steel for durability under shop conditions. Transfer screws are threaded into existing tapped holes, and when the mating workpiece is pressed against them, the screw points mark the exact center locations for drilling. This set uses a 9/16-18 thread specification, making it compatible with common tapped hole patterns found in metalworking and machining applications. Machinists, toolmakers, and maintenance technicians are the primary users.

Transfer screw sets are used in machine shops, tool rooms, and maintenance facilities where precise hole-pattern duplication is required. The 9/16-18 thread size suits medium to large hole patterns. Common applications include aligning mounting plates, duplicating bolt patterns, and fitting components that must register accurately to an existing tapped surface. The included holder keeps screws organized and allows controlled placement during the transfer operation.

Key Features

• 7-piece set includes 6 transfer screws and 1 holder for organized use
• 9/16-18 thread specification for medium to large tapped hole patterns
• Steel construction provides durability and resistance to deformation under pressing force
• Point tips mark precise hole centers for accurate follow-up drilling
• Holder keeps screws secure and accessible during layout work

Compatibility

Designed for use in tapped holes with a 9/16-18 thread specification. Suitable for standard metalworking, machining, and toolroom applications requiring accurate hole-pattern transfer.

Installation Notes

Transfer screws are installed by hand or with a driver into existing tapped holes in the reference workpiece. The mating part is then pressed firmly against the screw points to transfer center marks. No power tools are required for the transfer operation itself. Drill the marked locations before removing the transfer screws to preserve layout accuracy.
