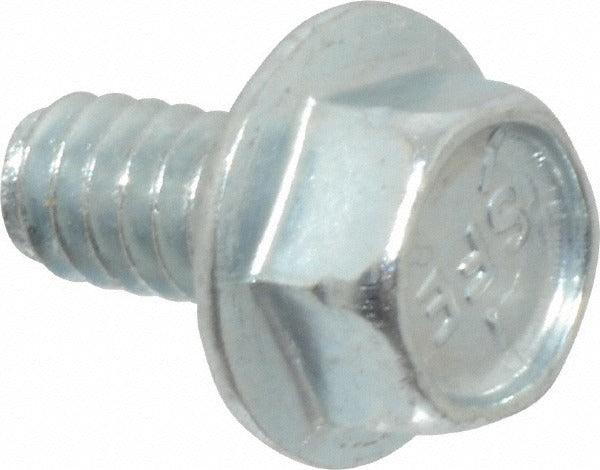

Value Collection 825028MSC Serrated Flange Bolt 10-24 Unc

Product Description

The VALUE COLLECTION 825028MSC is a serrated flange bolt designed for secure fastening in applications where a built-in locking surface is required. The serrated flange distributes clamp load across a wider bearing surface while the teeth bite into the mating material to resist loosening under vibration. This bolt is fully threaded with a 10-24 UNC thread size and a length under head of 0.375 inches. It is manufactured from Grade 5 steel with a zinc-plated finish for basic corrosion resistance. Hex drive allows installation with standard hex tooling. Meets ASME B18.6.3 and SAE J429 standards.

This serrated flange bolt is suited for light-duty mechanical and electrical assembly work where vibration resistance is needed without a separate washer. Typical applications include panel mounting, equipment enclosures, HVAC sheet metal assemblies, light structural connections, and general-purpose fastening in both commercial and residential settings. The compact 0.375-inch thread length makes it appropriate for thin-material applications. Installers in electrical, HVAC, and mechanical trades will find this bolt useful wherever a self-locking flange fastener is called for in inch-series assemblies.

Key Features

• Serrated flange provides vibration-resistant clamping without a separate lock washer
• Fully threaded along the 0.375-inch length under head for maximum thread engagement in thin materials
• Grade 5 steel construction meets SAE J429 mechanical property requirements
• Zinc-plated finish offers basic corrosion protection for indoor and sheltered applications
• Hex drive compatible with standard hex wrenches and nut drivers
• Conforms to ASME B18.6.3 dimensional standards for inch-series bolts

Compatibility

Designed as a standard inch-series serrated flange bolt for use in any application requiring a 10-24 UNC threaded fastener with a 0.375-inch length under head.

Installation Notes

Installation requires a hex wrench or nut driver sized to the hex flange head. Ensure the mating thread is clean and free of debris before installation. Do not exceed the torque range appropriate for Grade 5 steel fasteners at this thread size, and consult applicable standards for torque specifications. Power down or de-energize any assembly before fastening into or near electrical components.
