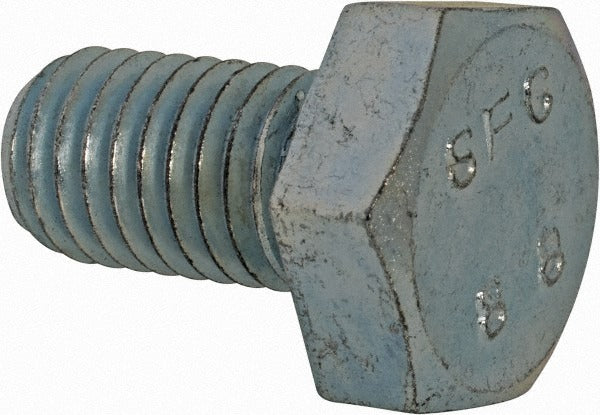

Value Collection 815463PR Hex Head Cap Screw M10 1.50 18mm

Product Description

The Value Collection 815463PR is a metric hex head cap screw designed for general mechanical fastening applications. It carries an M10 x 1.50 thread profile with an 18 mm length under the head and is fully threaded from tip to bearing face. Manufactured from Grade 8.8 steel, this fastener delivers reliable tensile and proof load performance in standard structural and mechanical assemblies. A zinc-plated finish provides basic corrosion resistance in dry to mildly humid environments. The 17 mm hex drive accepts standard metric wrenches and sockets. Machinists, millwrights, equipment assemblers, and maintenance technicians are the primary installers of this fastener class.

This screw is suited for residential and commercial mechanical assemblies, equipment frames, brackets, and structural connections where a fully threaded metric fastener is required. Its DIN 933 and ISO 4017 compliance makes it a standard choice when print callouts reference those specifications. The fully threaded body allows engagement along the entire shank length, which is particularly useful in thinner material stacks or when maximum thread engagement depth is needed in a tapped hole.

Key Features

• M10 x 1.50 metric thread profile, fully threaded
• 18 mm length under head for precise stack-up control
• Grade 8.8 steel construction for dependable tensile strength in mechanical assemblies
• Zinc-plated finish for basic corrosion resistance
• 17 mm hex drive compatible with standard metric sockets and open-end wrenches
• Conforms to DIN 933 and ISO 4017 standards

Compatibility

Designed as a standard metric hex head cap screw for any assembly calling out an M10 x 1.50 x 18 mm fully threaded fastener per DIN 933 or ISO 4017.

Installation Notes

Installation is performed by machinists, millwrights, or maintenance technicians using standard metric hand tools or powered drive equipment. Always verify thread engagement depth and tapped hole condition before installation. Apply appropriate torque using a calibrated torque wrench per the assembly specification for Grade 8.8 fasteners. Do not use this fastener as a substitute for higher-grade or application-specific fasteners without confirming load requirements.
