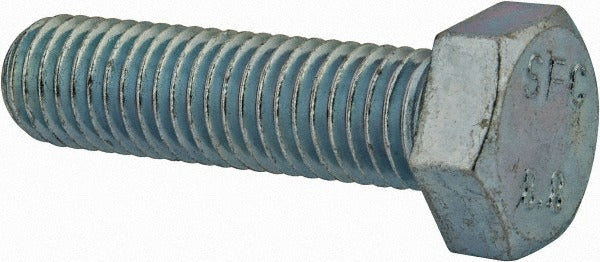

Value Collection 815124PS Hex Cap Screw M12x1.75x45 Grade 8.8

Product Description

The VALUE COLLECTION 815124PS is a metric hex head cap screw designed for general mechanical fastening in steel assemblies and fabricated structures. Manufactured from Grade 8.8 steel with a zinc-plated finish, this fully threaded fastener meets DIN 933 and ISO 4017 standards. The M12 x 1.75 thread profile and 45 mm length under the head make it suitable for medium-load bolted connections where a standardized metric fastener is required. The 19 mm hex drive allows installation with standard metric wrenches or sockets. Grade 8.8 designates a medium-high strength carbon steel, appropriate for structural and mechanical applications across a wide range of industries.

This fastener is used in industrial equipment assembly, metal fabrication, machinery mounting, and structural steel connections. It is appropriate for both shop and field installation wherever a fully threaded M12 metric bolt conforming to DIN 933 or ISO 4017 is specified. Machinists, millwrights, maintenance technicians, and ironworkers routinely use this grade and thread size for bolted flange connections, bracket mounting, and frame assembly in residential and commercial construction as well as manufacturing environments.

Key Features

• Grade 8.8 steel construction provides medium-high tensile strength for demanding mechanical applications
• Zinc-plated finish offers baseline corrosion resistance in dry and mildly humid environments
• Fully threaded shank along entire 45 mm length under head for maximum thread engagement
• 19 mm hex size compatible with standard metric wrenches and sockets
• Conforms to DIN 933 and ISO 4017 standards for dimensional and mechanical consistency
• Metric thread standard ensures interchangeability with ISO-spec nuts and hardware

Compatibility

Designed as a standard DIN 933 and ISO 4017 fully threaded hex head cap screw in M12 x 1.75 thread pitch, compatible with any M12 x 1.75 metric hex nut or threaded insert conforming to the same ISO metric thread standard.

Installation Notes

Install using a 19 mm metric wrench or socket driver. Always ensure mating nuts or threaded holes conform to M12 x 1.75 metric thread specification before installation. Torque to the value specified in the applicable engineering or equipment documentation — do not assume a torque value based on grade alone without referencing the design specification. In structural applications, consult applicable codes and engineering requirements for proper fastener installation procedures.
