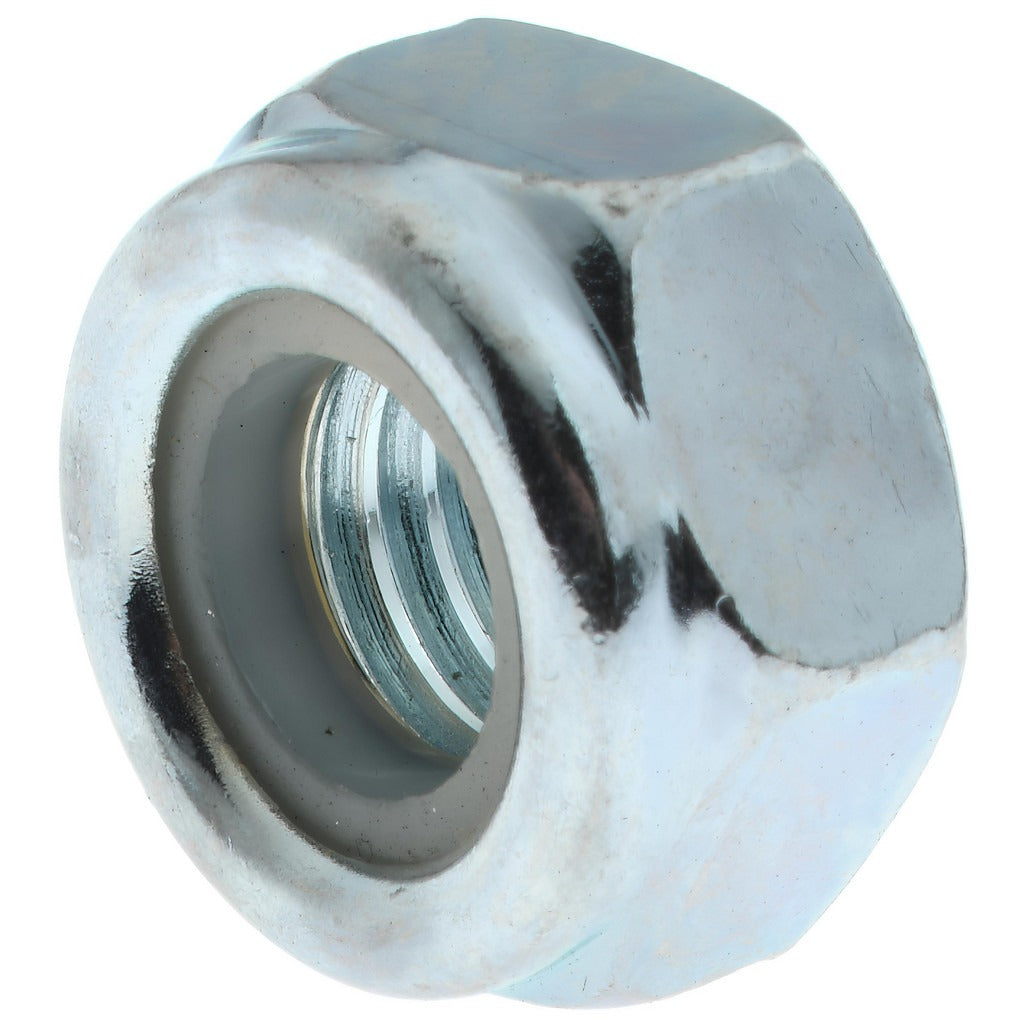

Value Collection 812050PR M10x1.5 Hex Lock Nut Din 985

Product Description

The VALUE COLLECTION 812050PR is an M10x1.5 hex lock nut with a nylon insert locking mechanism, manufactured from Class 8 steel with a zinc finish. The nylon insert compresses against the mating thread as the nut is driven home, creating resistance to loosening under vibration and dynamic loads. Dimensionally, it measures 17.00 mm across flats and 10.00 mm in height, conforming to DIN 985. This fastener is suited for mechanical assemblies, structural connections, and equipment fabrication where a reliable metric prevailing-torque lock nut is required.

This nut is used in a wide range of industrial, mechanical, and construction applications where metric fasteners are specified. It is appropriate for general-purpose bolted assemblies subject to vibration, including machinery frames, brackets, conveyor systems, and light structural connections. Right-hand thread direction is standard for conventional wrench-tightened installations. Trades and fabricators working to metric DIN standards will find this nut a direct-fit solution for M10 bolt and stud applications.

Key Features

• Nylon insert locking style resists loosening under vibration without thread damage
• M10x1.5 metric thread size with right-hand thread direction
• Class 8 steel construction for reliable load-bearing strength
• Zinc finish provides corrosion resistance in general-purpose environments
• Conforms to DIN 985 fastener standard
• 17.00 mm width across flats fits standard metric wrenches and sockets

Compatibility

Designed as a DIN 985-compliant prevailing-torque hex lock nut for use with M10x1.5 metric bolts and threaded studs in standard right-hand thread applications.

Installation Notes

Installation requires a standard metric wrench or socket sized for 17.00 mm across flats. Power down or de-energize any associated equipment before working on bolted assemblies. Nylon insert lock nuts are intended for single-use applications — the insert loses clamping effectiveness after removal and the nut should be replaced rather than reused. Torque to the assembly specification for the joint design; do not exceed the rated capacity of the Class 8 hardware.
