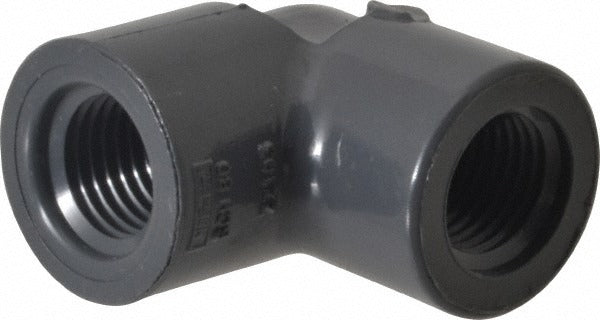

Value Collection 808-002 Pvc 90 Elbow Sch 80 Fipt

Product Description

The VALUE COLLECTION 808-002 is a Schedule 80 PVC 90-degree elbow fitting designed for use in pressurized plastic piping systems. Sized at 0.25 inches with female iron pipe thread (FIPT) connections on both ends, this fitting allows plumbers and pipefitters to make a right-angle direction change in a threaded PVC run. Schedule 80 wall thickness provides greater pressure tolerance than Schedule 40, making it appropriate for higher-demand applications. At 0.03 pounds, it is a compact, lightweight component suited for tight installation spaces in commercial and residential plumbing systems.

This elbow is used in low-volume fluid or air distribution lines where a 90-degree turn is required. Typical applications include chemical handling, irrigation sub-runs, compressed air distribution at low pressure, and plumbing drain or supply branch lines. The FIPT x FIPT configuration requires male-threaded nipples or adapters on both connecting pipes. It is commonly installed by licensed plumbers, pipefitters, and industrial maintenance technicians working with PVC threaded systems.

Key Features

• Schedule 80 PVC construction offers increased wall thickness and higher pressure rating compared to Schedule 40
• 90-degree elbow geometry allows a clean right-angle direction change in threaded piping runs
• FIPT x FIPT end connections accept standard male NPT-threaded pipe or fittings on both ends
• 0.25-inch fitting size suits small-bore piping applications
• Lightweight at 0.03 pounds, suitable for confined or weight-sensitive installations

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC threaded piping systems using 0.25-inch nominal pipe size with standard male NPT-threaded connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter in accordance with applicable local plumbing codes and IPC guidelines. Depressurize and drain the line completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape to male threads before assembly, and hand-tighten followed by a controlled wrench turn — do not overtighten PVC threads, as this can crack the fitting. PVC fittings are not rated for steam or high-temperature fluid service; verify system fluid and temperature compatibility before installation.
