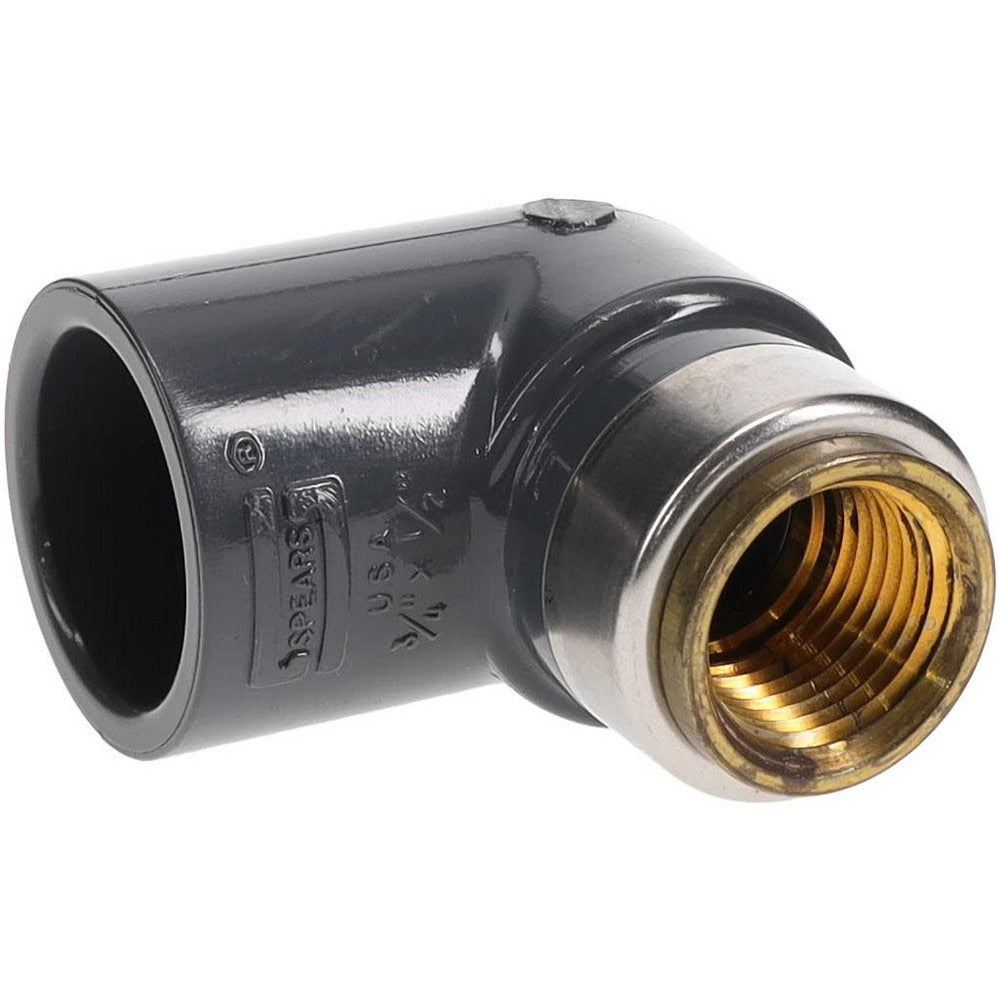

Value Collection 807-101BR Pvc 90 Elbow Sch 80 3/4x1/2

Product Description

The VALUE COLLECTION 807-101BR is a Schedule 80 PVC 90-degree elbow fitting designed for directional changes in piping systems. It features a PVC slip inlet on one end and a brass female iron pipe thread (FIPT) outlet on the other, allowing a transition between solvent-weld PVC and threaded brass or metal connections. The fitting measures 3/4 inch on the slip side and 1/2 inch on the FIPT side, making it a reducing elbow. At 0.16 pounds, it is lightweight and easy to handle during installation. Plumbers and pipefitters install this type of fitting in both new construction and repair applications where a right-angle direction change and a material transition are needed in the same connection point.

This elbow is suited for residential and light commercial plumbing systems where PVC Schedule 80 pipe is specified. The Schedule 80 wall thickness provides added pressure tolerance compared to Schedule 40, making it appropriate for applications with moderate pressure requirements. The brass FIPT end accepts standard male-threaded fittings or valves, allowing connection to metal components such as ball valves, gauges, or supply stubs. It is commonly installed in water supply, irrigation, and industrial fluid handling lines where a reducing 90-degree turn with a material transition is required.

Key Features

• Schedule 80 PVC construction for higher pressure tolerance than Schedule 40
• PVC slip inlet accepts solvent-weld connection on the 3/4 inch side
• Brass FIPT outlet on the 1/2 inch side for threaded metal connections
• Reducing elbow design changes both direction and pipe size in a single fitting
• Lightweight at 0.16 pounds for easy handling in confined spaces

Compatibility

Designed as an OEM-style replacement or new-installation fitting for Schedule 80 PVC piping systems using 3/4 inch slip and 1/2 inch female iron pipe thread connections.

Installation Notes

This fitting is installed by licensed plumbers or qualified pipefitters. Before installation, shut off and depressurize the supply line completely. The PVC slip end requires approved PVC solvent cement applied per the cement manufacturer's instructions and local plumbing code, typically referencing IPC or local amendments. The brass FIPT end should be assembled with an appropriate thread sealant or PTFE tape; do not overtighten, as this can crack the brass threads.
