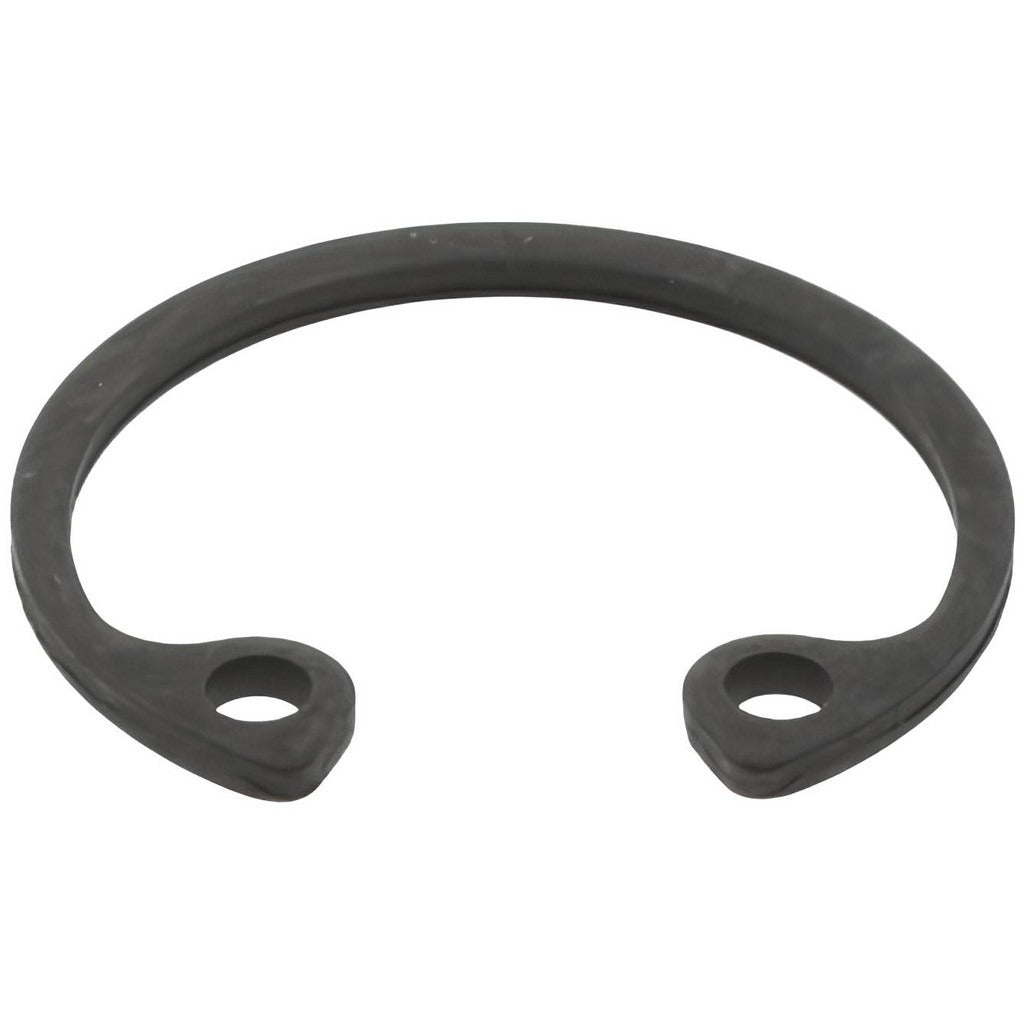

Value Collection 80122484 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122484 is an internal snap retaining ring designed to secure components within a bored housing or shaft assembly. Stamped from spring steel with a phosphate finish, this ring seats into a machined internal groove to provide positive axial retention without fasteners. It is suited for high-volume industrial, mechanical, and trade assembly work where a reliable, low-profile retaining solution is required. The ring has a 5/8 inch bore diameter, a free outer diameter of 0.694 inches, and a ring thickness of 0.035 inches. Machinists, millwrights, and maintenance technicians are the primary installers.

This internal retaining ring is used wherever a bore diameter of 5/8 inch requires axial component retention. Typical applications include motor housings, pump assemblies, gearboxes, and general mechanical assemblies across industrial, HVAC, and equipment-repair settings. The phosphate finish provides a baseline level of corrosion resistance suitable for indoor and protected environments. This item is sold in a pack of 25 rings, making it appropriate for both single-repair jobs and small production runs.

Key Features

• Internal snap ring design seats into a machined groove for axial retention
• Spring steel construction provides consistent snap force and durability
• Phosphate finish for baseline corrosion protection
• Groove width of 0.039 inches with a tolerance of 0.000 to 0.003 inches
• Ring thickness of 0.035 inches with a tolerance of -0.002 to 0.002 inches
• Pack of 25 rings per package

Compatibility

Designed as a standard internal snap retaining ring for bores with a nominal diameter of 5/8 inch and a groove width of 0.039 inches. Verify groove diameter tolerance of -0.0020 to 0.0040 inches against the housing specification before installation.

Installation Notes

Internal snap retaining rings require internal snap ring pliers sized for the bore diameter. Always confirm groove dimensions match ring specifications before installation. Wear eye protection during installation, as rings can release under spring tension. Remove all power or pressure from the assembly before servicing any component secured by this ring.
