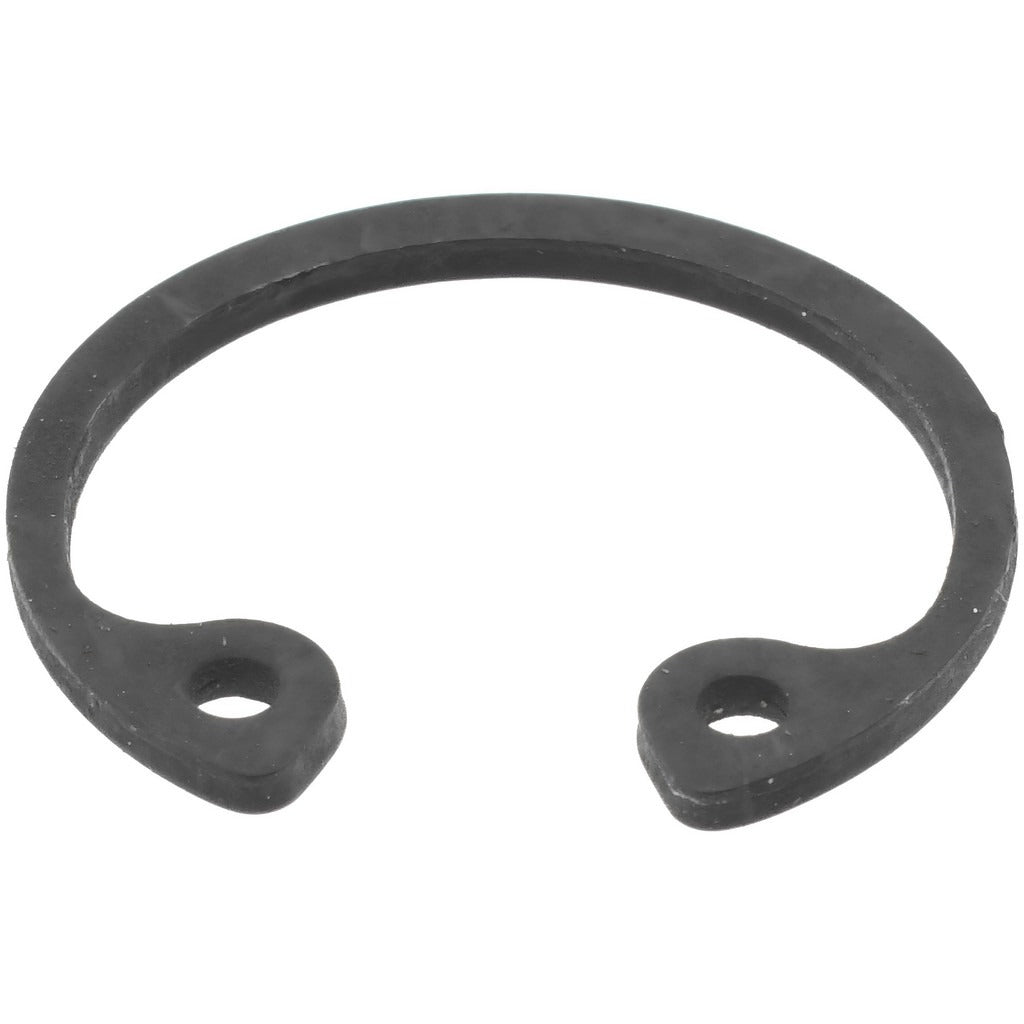

Value Collection 80122476 Internal Snap Ring 9/16 in Bore 25 Pack

Product Description

The VALUE COLLECTION 80122476 is an internal snap retaining ring designed to seat within a bored housing and retain shaft-mounted components against axial movement. Manufactured from spring steel with a phosphate finish, this ring provides reliable holding force in mechanical assemblies subject to moderate loads and vibration. The ring measures 0.62 inches in free outer diameter with a ring thickness of 0.035 inches, and installs into a groove that is 0.039 inches wide by 0.017 inches deep. This type of fastener is commonly installed by machinists, maintenance technicians, and assembly professionals working on rotating equipment, gearboxes, pumps, and motors.

This internal snap ring is sized for a 9/16 inch nominal bore diameter and fits a corresponding 9/16 inch groove in a housing bore. It is well-suited for use in light-duty to medium-duty mechanical assemblies including electric motor housings, hydraulic pump bodies, and general industrial equipment where a secure, low-profile retention method is required. Each package contains 25 rings, making this listing appropriate for bench stock, repair shops, or production-line use where multiple installations are anticipated.

Key Features

• Spring steel construction provides consistent radial tension and reliable snap-fit retention
• Phosphate finish offers baseline corrosion resistance and improved lubricity during installation
• 9/16 inch nominal bore size with a free outer diameter of 0.62 inches
• Groove width of 0.039 inches and groove depth of 0.017 inches for precise seating
• Ring thickness of 0.035 inches with tight tolerance for consistent fit
• Sold in a pack of 25 — suitable for bench stock or multi-unit repair jobs

Compatibility

Designed as a standard internal snap retaining ring for housing bores with a 9/16 inch nominal diameter groove. Suitable for use in any mechanical assembly that conforms to the specified groove width, groove depth, and bore diameter dimensions listed in the technical specifications.

Installation Notes

Internal snap rings of this type require internal snap ring pliers for proper installation and removal — do not attempt to seat or remove with screwdrivers or makeshift tools, as this can cause ring distortion or eye-injury hazard from ejection. Confirm groove dimensions in the housing bore match the specified groove width and depth tolerances before installation. Depressurize or de-energize any equipment before servicing components that require retaining ring removal. Follow applicable machinery safety standards and manufacturer service procedures for the host assembly.
