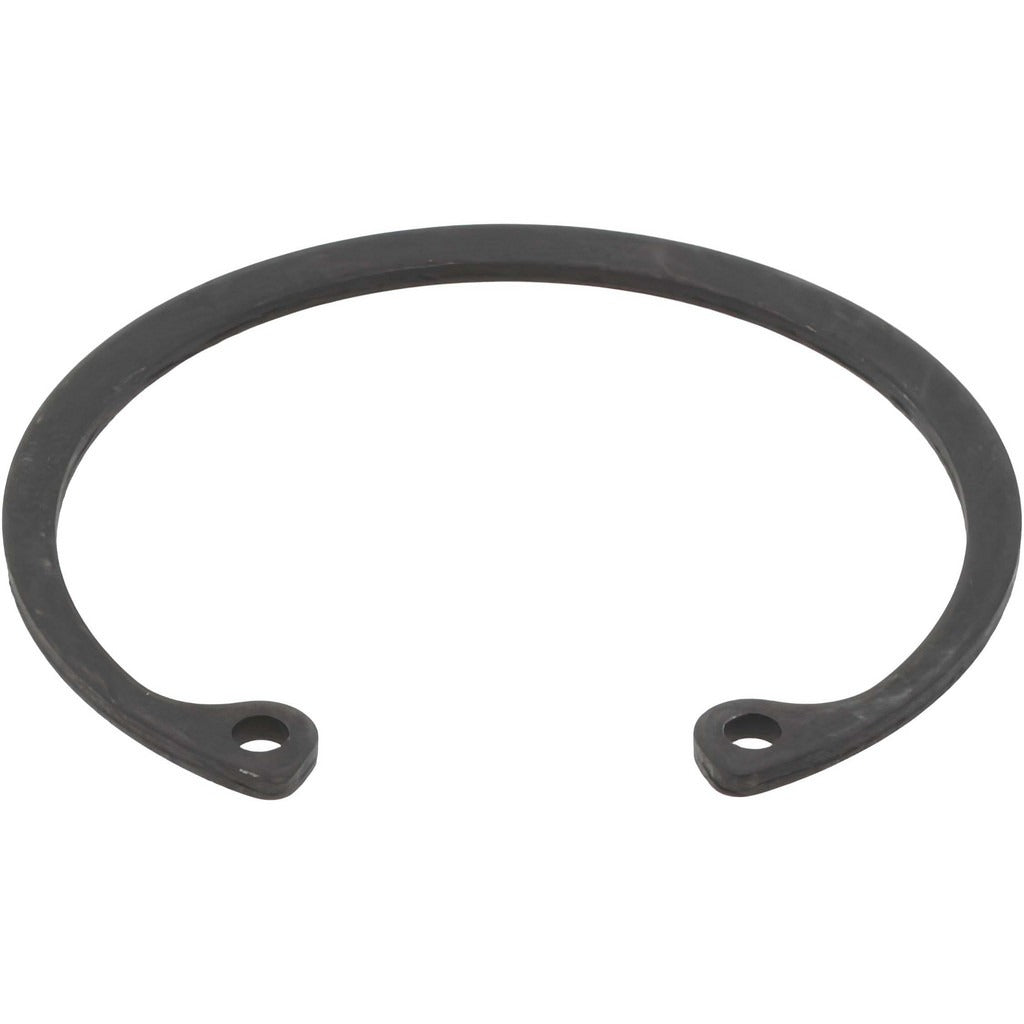

Value Collection 80122393 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122393 is an internal snap retaining ring designed to seat within a machined bore groove and prevent axial movement of shafts, bearings, and other retained components. Manufactured from spring steel with a phosphate finish, this ring measures 1-15/16 inches nominal bore diameter with a free outer diameter of 2.141 inches. Ring thickness is 0.062 inches, and the groove width is 0.068 inches with a groove depth of 0.059 inches. The phosphate finish provides a baseline level of corrosion resistance and lubricity. This part is appropriate for mechanical assembly, light industrial, and maintenance repair applications where a standard internal retaining ring is required.

Internal snap retaining rings of this type are commonly installed in gearboxes, motor housings, pump assemblies, and general mechanical assemblies where a bore-mounted retaining feature is needed. The 1-15/16 inch bore size suits mid-range shaft and bearing applications in both residential and light commercial equipment. Machinists, millwrights, and maintenance technicians typically install these rings during equipment assembly or overhaul. This listing is sold in a package quantity of five rings.

Key Features

• Internal snap ring design seats in a machined bore groove for axial component retention
• 1-15/16 inch nominal bore diameter with a 2.141 inch free outer diameter
• Spring steel construction provides consistent snap force and durability
• Phosphate finish offers corrosion resistance and surface lubricity
• Groove width tolerance of 0.000 to 0.004 inches supports precise fitment
• Sold in a package of 5 rings with a minimum order quantity of 1

Compatibility

Designed as a standard internal snap retaining ring for machined bore grooves with a 1-15/16 inch nominal diameter, suitable for general mechanical assemblies requiring axial retention.

Installation Notes

Installation requires snap ring pliers sized for internal rings. Confirm bore groove width and depth match the ring dimensions before installation. Relieve all load and de-energize or lock out the equipment before disassembling any bearing or shaft assembly. Do not reuse a ring that has been overstressed or visibly deformed during removal.
