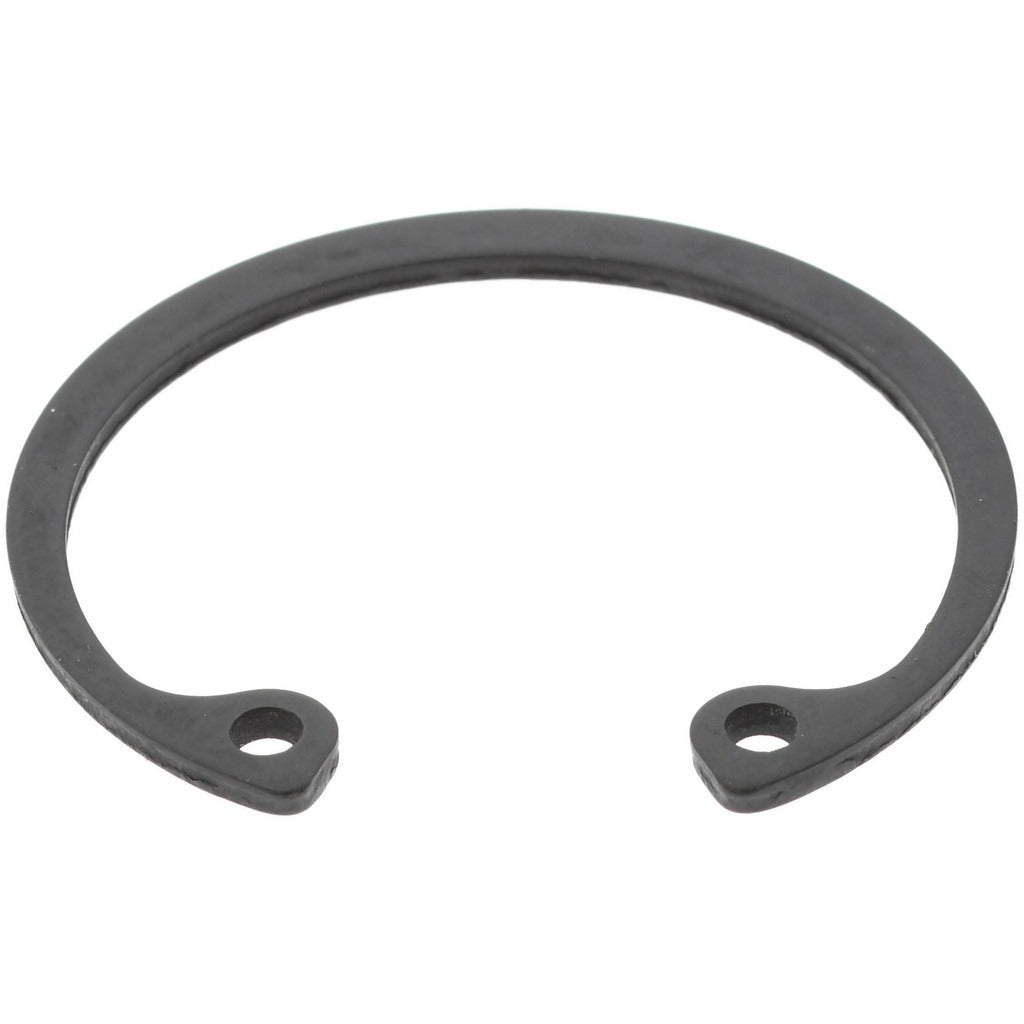

Value Collection 80122260 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122260 is a spring steel internal snap retaining ring designed to seat in a machined groove inside a bore to secure components against axial movement. With a nominal bore diameter of 1-3/16 inches and a free outer diameter of 1.319 inches, this ring installs into the groove and provides a positive stop for bearings, bushings, shafts, and similar retained parts. Ring thickness is 0.05 inches. The phosphate finish provides a base level of corrosion resistance suitable for general mechanical assemblies. Machinists, maintenance technicians, and assembly professionals use this type of ring across a wide range of industrial and mechanical applications.

This internal retaining ring is suited for use in gearboxes, pump housings, electric motor end bells, hydraulic cylinders, and similar bored assemblies where a low-profile, reliable axial retainer is required. The 1-3/16 inch bore size is a common dimension in light industrial and commercial equipment. Installation requires a bore groove machined to the specified width and depth tolerances. This SKU ships in a package quantity of 15 rings, making it appropriate for production line use or shop stock replenishment.

Key Features

• Spring steel construction provides consistent snap-in retention force and durability under load
• Phosphate finish offers baseline corrosion resistance for general mechanical environments
• Groove width of 0.056 inches with a tolerance of 0.000 to 0.004 inches for precise groove fit
• Groove depth of 0.037 inches for proper ring seating
• Ring thickness of 0.05 inches with a tolerance of -0.002 to 0.002 inches
• Package quantity of 15 rings per package, with a minimum order quantity of 1

Compatibility

Designed as an OEM-style internal snap retaining ring for bored assemblies with a 1-3/16 inch nominal bore diameter machined to the specified groove dimensions.

Installation Notes

Internal snap retaining rings are installed and removed by machinists or maintenance technicians using internal snap ring pliers sized for the bore diameter. Always de-energize and lock out equipment before servicing any assembly containing retaining rings. Confirm the bore groove dimensions match the specified groove width and depth tolerances before installation. Never reuse a ring that has been overstressed, distorted, or shows signs of cracking.
