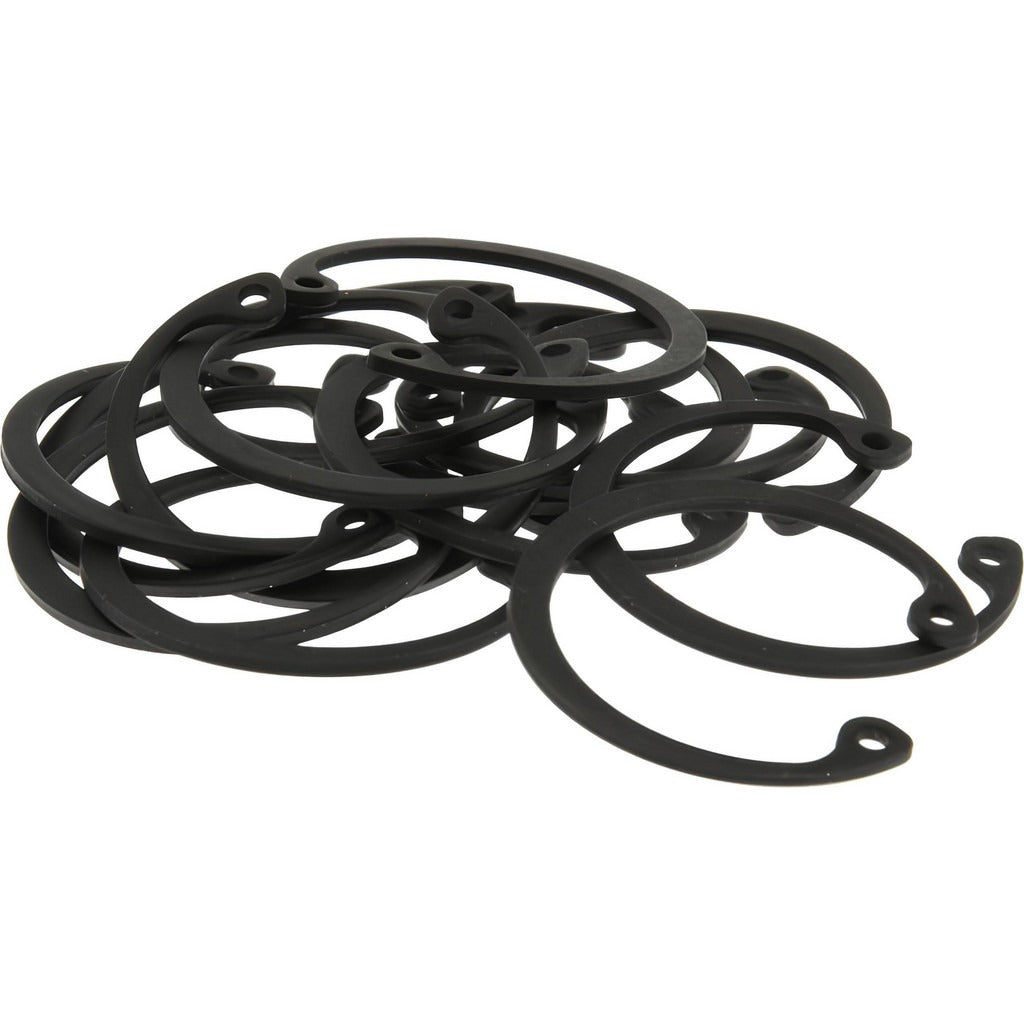

Value Collection 80122252 Internal Snap Retaining Ring

Product Description

The VALUE COLLECTION 80122252 is an internal snap retaining ring designed to secure components within a bored housing or shaft assembly. Manufactured from spring steel with a phosphate finish, this ring seats into a machined internal groove to prevent axial movement of retained parts. It carries a 1-1/8 inch nominal bore diameter and a free outer diameter of 1.249 inches. Ring thickness is 0.05 inches, and the groove profile measures 0.056 inches wide by 0.036 inches deep. These rings are installed by machinists, maintenance technicians, and mechanical assembly professionals wherever a reliable, low-profile internal retention method is required.

This internal snap ring is suited for use in light machinery, HVAC equipment assemblies, pump housings, motor end bells, and general mechanical fabrication applications. The phosphate finish provides a base-level corrosion resistance appropriate for indoor and controlled-environment installations. With a minimum order quantity of 1 and a package quantity of 15, this ring is practical for both single-repair jobs and small-batch assembly work across residential and light commercial mechanical systems.

Key Features

• Internal snap ring design seats into a machined bore groove to prevent axial part displacement
• Spring steel construction provides consistent radial tension and reliable retention force
• Phosphate finish offers baseline corrosion resistance for controlled-environment use
• Groove width tolerance of 0.000 to 0.004 inches ensures precise groove fitment
• Ring thickness tolerance of -0.002 to 0.002 inches for consistent seating depth
• Package quantity of 15 supports both single repairs and small-batch assembly

Compatibility

Designed as an OEM-style replacement or new-installation internal retaining ring for any assembly requiring a 1-1/8 inch bore internal snap ring groove with a 0.056 inch groove width and 0.036 inch groove depth.

Installation Notes

Internal snap rings of this type are installed and removed using internal snap ring pliers; using incorrect tools risks deforming the ring or damaging the groove. Power down or de-energize any equipment before accessing internal assemblies. Verify groove diameter, width, and depth against the ring specifications before installation to ensure proper seating and retention. Follow applicable machinery safety standards and manufacturer service procedures when disassembling and reassembling housings or rotating components.
