Value Collection 80122237 Internal Snap Retaining Ring 1 in

Product Description

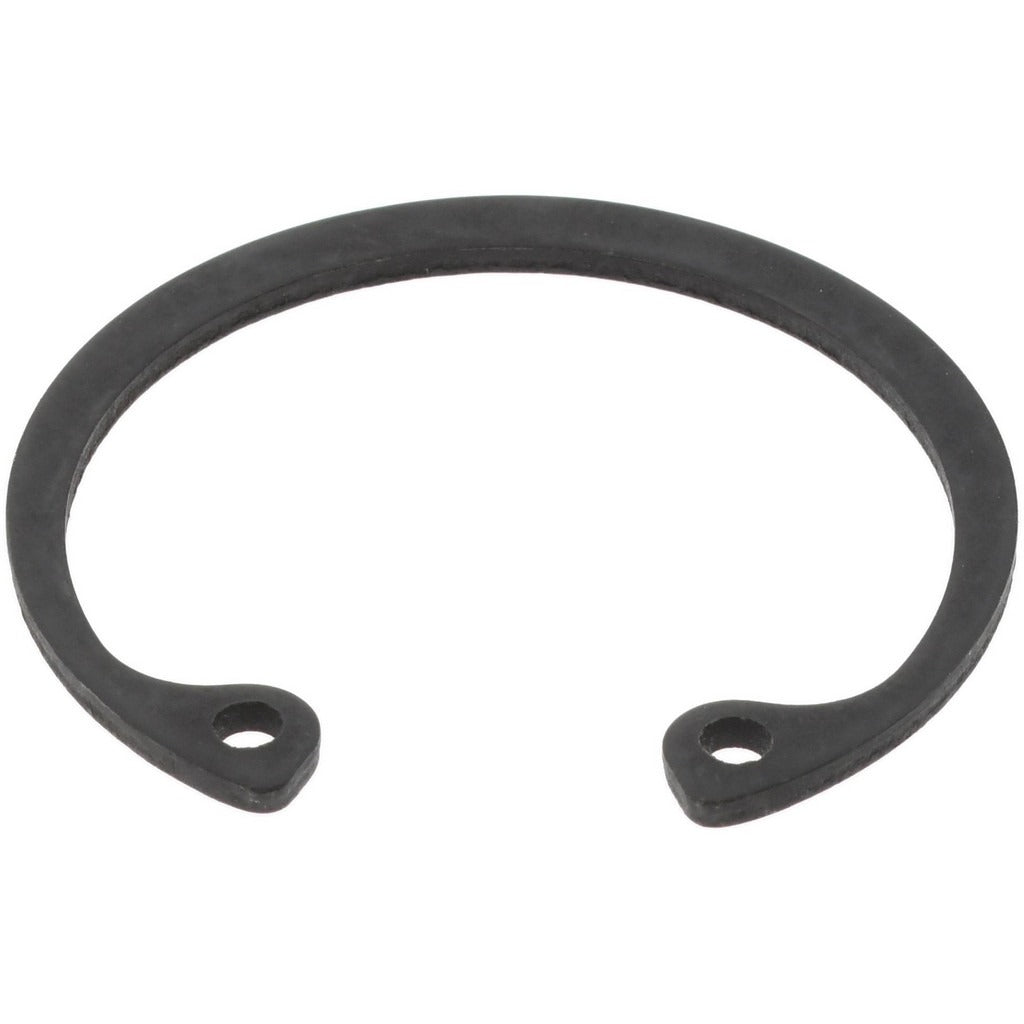

The VALUE COLLECTION 80122237 is a spring steel internal snap retaining ring designed for 1 inch bore diameter applications. It seats into a machined internal groove to axially retain shafts, pins, bearings, and similar components inside bored housings. The ring has a free outer diameter of 1.111 inches, a ring thickness of 0.042 inches, and requires a groove width of 0.046 inches with a groove depth of 0.033 inches. A phosphate finish provides baseline corrosion resistance and lubricity. Machinists, maintenance technicians, and assembly mechanics install these rings using standard internal snap ring pliers during equipment assembly or field repair work.

This internal retaining ring is suited for general industrial, mechanical, and trade maintenance applications where a 1 inch nominal bore size is present. Typical uses include gearboxes, pump housings, motor end bells, hydraulic cylinders, and power transmission assemblies. The ring is sold in a package quantity of 20, making it practical for bench stock or low-volume production runs requiring a reliable internal groove retainer.

Key Features

• Spring steel construction provides consistent radial spring force and long service life
• Phosphate finish adds corrosion resistance and reduces galling during installation
• 1 inch bore diameter with a 1.111 inch free outer diameter for positive groove engagement
• Groove width of 0.046 inches and groove depth of 0.033 inches for precise fitment
• Ring thickness of 0.042 inches with a tight thickness tolerance of plus or minus 0.002 inches
• Package quantity of 20 supports bench stock and small-batch assembly needs

Compatibility

Designed as a standard internal snap retaining ring for 1 inch nominal bore diameter grooves machined to the corresponding groove width and depth dimensions specified for this ring size.

Installation Notes

Installation requires internal snap ring pliers sized for this ring diameter. Inspect the groove for burrs, damage, or debris before seating the ring to ensure full groove engagement and correct axial retention. Eye protection is required during snap ring installation due to the risk of ring ejection under spring load. Always verify that the installed ring is fully seated in the groove before applying axial load to the assembly.
