Value Collection 75192CH2 Hex Cap Screw 3/4-10 X 12 in Grade 2

Product Description

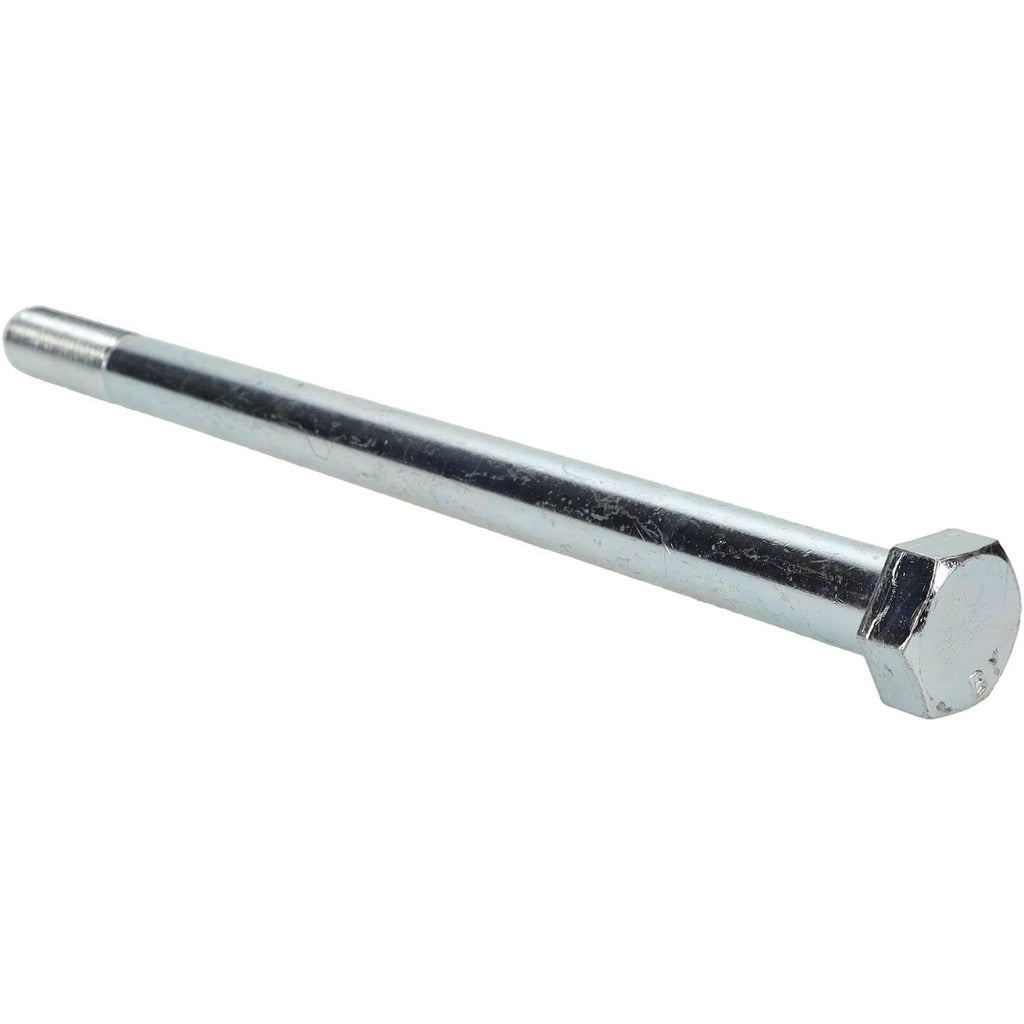

The VALUE COLLECTION 75192CH2 is a partially threaded hex head cap screw designed for heavy-duty fastening applications in mechanical, structural, and industrial assemblies. Manufactured from Grade 2 steel with a zinc-plated finish for basic corrosion resistance, this fastener measures 3/4-10 thread size with a 12-inch length under the head. The UNC (Unified National Coarse) thread form provides reliable engagement in standard tapped holes and nuts. Weighing 1.58 pounds, this is a substantial fastener suited for applications requiring a long grip length. It conforms to ASME B18.2.1 and SAE J429 standards, making it appropriate for general mechanical and structural use.

This hex head cap screw is used in a wide range of trade and industrial applications including HVAC equipment framing, mechanical equipment mounting, structural steel connections, pump bases, and heavy equipment assembly. The partial threading allows for a smooth shank section along the grip length, which is preferred in applications where the shank bears shear load or where clamping force must be distributed across an unthreaded bearing surface. It is sold individually and is suitable for both new installation and replacement fastening work.

Key Features

• Grade 2 steel construction meets SAE J429 mechanical property requirements for general-purpose fastening
• Zinc-plated finish provides baseline corrosion protection in dry and mildly humid environments
• Partially threaded shank allows the unthreaded section to carry shear loads and provides a clean clamping grip
• UNC thread form (3/4-10) is compatible with standard hex nuts, lock nuts, and tapped holes
• Conforms to ASME B18.2.1 dimensional standards for hex head cap screws
• Long 12-inch length under head suits thick material stacks and deep through-bolt applications

Compatibility

Designed as a general-purpose hex head cap screw for use with standard 3/4-10 UNC tapped holes, hex nuts, and heavy hex nuts in inch-system fastening applications.

Installation Notes

Installation should be performed by a qualified mechanic, millwright, or tradesperson using an appropriate hex socket or wrench sized for a 3/4-10 hex head cap screw. Always ensure the mating thread is clean and free of debris before installation. De-energize and lock out any equipment before fastening or removing structural hardware in powered assemblies. Do not exceed the torque capacity appropriate for Grade 2 fasteners as specified by applicable engineering or equipment documentation.
