Value Collection 724-5146 Roughing Finishing End Mill

Product Description

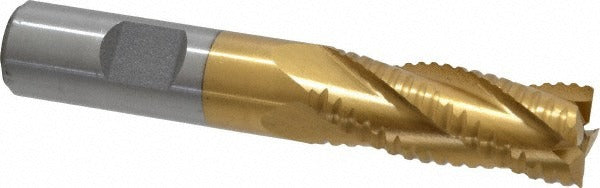

The VALUE COLLECTION 724-5146 is a cobalt roughing finishing end mill designed for material removal and surface finishing in a single tool. Built from M42 cobalt high-speed steel and coated with Titanium Nitride (TiN), it delivers extended tool life and heat resistance in demanding cutting applications. The 5/8 inch diameter, 4-flute, single-end configuration with a 30-degree helix angle promotes efficient chip evacuation and a smooth finish. This tool is installed and operated by machinists and tool-and-die professionals working with ferrous metals, stainless steels, and other hard materials.

This end mill is suited for use in vertical machining centers, knee mills, and manual milling machines where a combination roughing and finishing pass is required. The Weldon flat shank provides a secure, slip-resistant connection to standard collet and side-lock holders. With a right-hand flute direction and right-hand cutting rotation, it is compatible with conventional CNC and manual milling setups. It is not a centercutting tool, so plunge cuts are not recommended; peripheral and slot milling are the intended operations.

Key Features

• M42 cobalt construction provides superior heat and wear resistance compared to standard HSS
• TiN coating reduces friction and extends cutting life in ferrous and hard materials
• 4-flute, square end geometry supports both roughing and finishing passes
• 30-degree helix angle promotes efficient chip flow and reduced cutting force
• Weldon flat shank ensures secure tool holding and prevents slippage under load
• Right-hand cut, right-hand spiral for standard milling machine compatibility

Compatibility

Designed for use with standard 5/8 inch collet chucks, end mill holders, and Weldon flat side-lock holders on vertical machining centers and knee mills accepting right-hand rotating tools.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Power down and lock out the spindle before inserting or removing the tool. Seat the Weldon flat shank fully into the holder and tighten the set screw against the flat to prevent axial pullout. Do not use this end mill for plunge cutting, as it is not centercutting.
